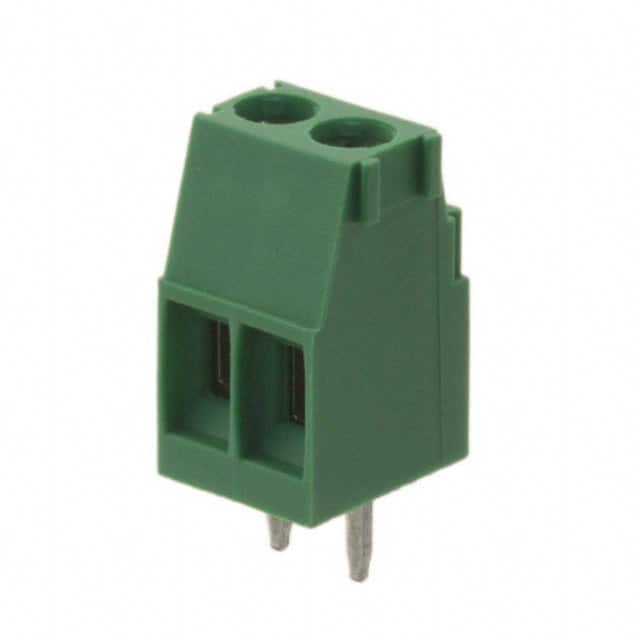

Same model may have multiple batches, images only for reference.
284391-2
Same model may have multiple batches, images only for reference.

284391-2

Part No 284391-2
Manufacturer TE Connectivity
Catalog Terminal Blocks
Description TERM BLK 2POS SIDE ENT 3.5MM PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Wire to Board
Mfr TE Connectivity
Series Buchanan
Package Bulk
Product Status Active
Number of Levels 1
Positions Per Level 2
Pitch 0.138" (3.50mm)
Mating Orientation Horizontal with Board
Current 12 A
Voltage 300 V
Wire Gauge 14-30 AWG
Mounting Type Through Hole
Wire Termination Screw - Rising Cage Clamp
Features Interlocking (Side)
Color Green
Housing Material Polyamide (PA66), Nylon 6/6
Contact Material - Plating Brass - Tin Plated
Clamp Material - Plating Brass - Nickel Plated
Screw Material - Plating Brass - Nickel Plated
Torque - Screw 0.25 Nm (2.2 Lb-In)
Screw Thread M3
Base Product Number 284391
Standard Package 300 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 849307-284391-2
Ultra Librarian 3D Model Ultra Librarian 284391-2 CAD Model

Description

The Buchanan series 2-position terminal block is a high-quality connector designed for wire-to-board applications. TE Connectivity is the manufacturer.

  • Pitch: 0.138" (3.50mm)
  • Wire Gauge: 14-30 AWG
  • Housing Material: Polyamide (PA66) and Nylon 6/6
  • Feature: Interlocking on the side
  • Termination: Screw-Rising Cage Clamp
  • Contact Material: Brass, Tin-Plated
  • Clamp and Screw Material: Brass, Nickel-Plated
  • Current Rating: 12A
  • Voltage Rating: 300V
  • Mating Orientation: Horizontal
  • Mounting: Through Hole
  • Packaging: Bulk (300 pcs)
  • Product Status: Active
