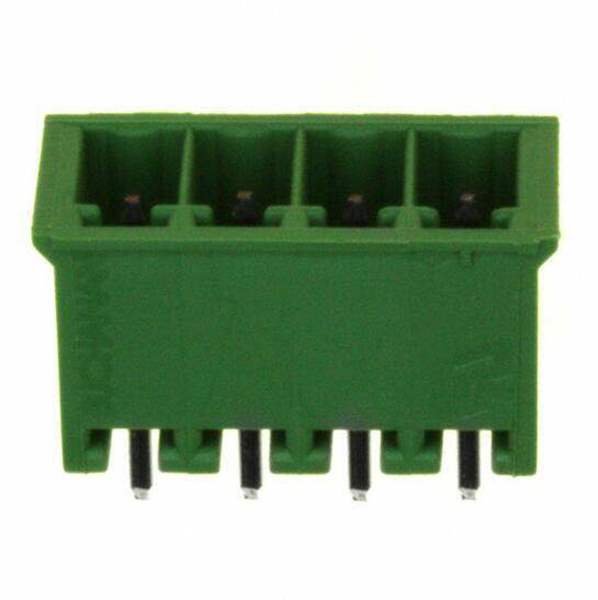

284514-4 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

284514-4

Part No 284514-4
Manufacturer TE Connectivity
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 4POS VERT 3.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Series Buchanan
Product Status Active
Type Header, Male Pins, Shrouded (4 Side)
Pitch 0.138" (3.50mm)
Header Orientation Vertical
Mounting Type Through Hole
Current - UL 11 A
Voltage - UL 300 V
Win Source Part Number WS1207431-284514-4
Ultra Librarian 3D Model Ultra Librarian 284514-4 CAD Model

Description

4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole
