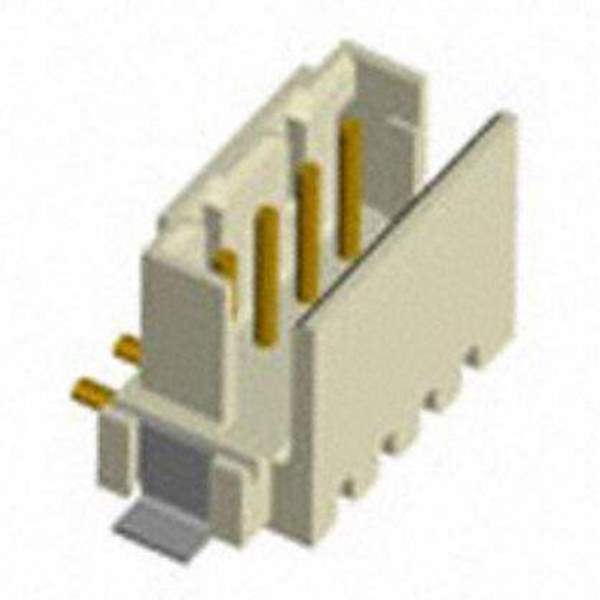

292175-6 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

292175-6

Part No 292175-6
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER SMD 6POS 2MM
Datasheet
292175-6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Connector Type Header
Contact Type Male Pin
Mounting Type Surface Mount
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.177" (4.50mm)
Insulation Height 0.307" (7.80mm)
Contact Shape Square
Contact Material Brass
Win Source Part Number WS1307814-292175-6
Ultra Librarian 3D Model Ultra Librarian 292175-6 CAD Model

Description

Connector Header Surface Mount 6 position 0.079" (2.00mm)
