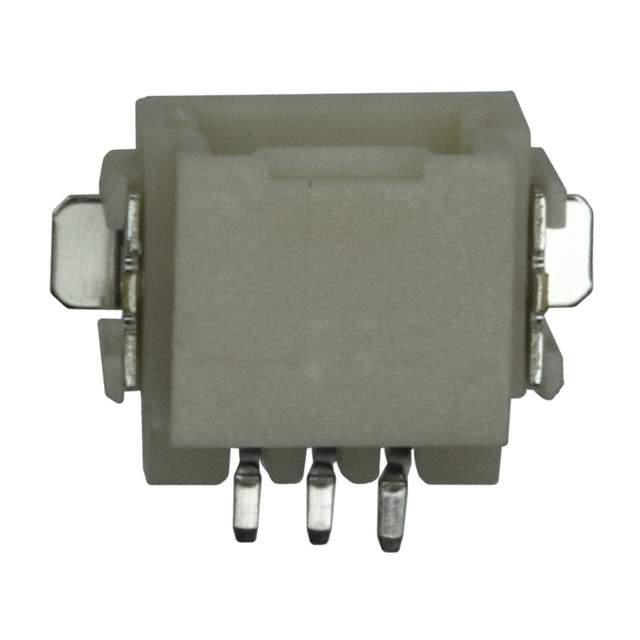

292227-3 Real Image
Same model may have multiple batches, images only for reference.

292227-3

Part No 292227-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description AMP MiNi CT Connector 1.5mm PITCH | CONN HEADER SMD R/A 3POS 1.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style SMT, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.094" (2.40mm)
Insulation Height 0.193" (4.90mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA6T), Nylon 6T, Glass Filled
Features Board Guide, Solder Retention
Temperature Range - Operating -30°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 50VAC
Applications General Purpose
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1123505-292227-3
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 292227-3 CAD Model

Description

The TE Connectivity AMP Connectors 292227-3 is a 3 position, right angle, board to cable/wire header connector.

  • GPTDescription: It has a pitch of 1.50mm and is shrouded with 4 walls.
  • GPTDescription: The connector has a detent lock fastening type and is made of brass contact material with a tin finish.
  • GPTDescription: The connector has a voltage rating of 50V AC and is suitable for general purpose applications.
  • GPTDescription: The connector has a temperature range of -30°C to 105°C and is made of polyamide (PA6T), nylon 6T, glass filled insulation material.
  • GPTDescription: The connector is offered in a reel packaging and has a solder termination.
