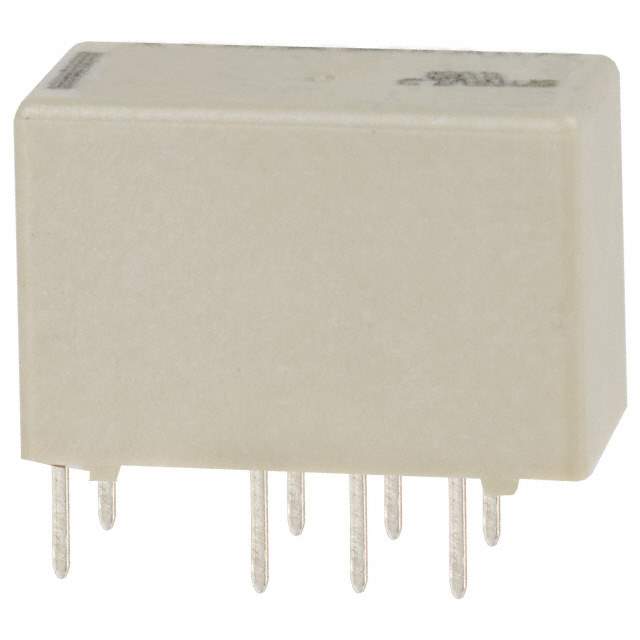

3-1393788-3 Real Image
Same model may have multiple batches, images only for reference.

3-1393788-3

Part No 3-1393788-3
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description Electromechanical Relay 5VDC 125Ohm 2A DPDT (14.8x7.3x9.2)mm SMD Signal Relay
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Ambient Temperature Range High 85 °C
Mounting SMD (SMT)
Case / Package DIP
Coil Current 28.09 mA
Coil Power 140 mW
Coil Resistance 178 Ω
Coil Voltage (AC) 5 V
Coil Voltage (DC) 5 V
Contact Current Rating 2 A
Contact Material Ruthenium
Contact Plating Gold
Current Rating 2 A
Depth 7.2 mm
ELV Compliant
Height 9.9 mm
Length 14.5 mm
Max Current Rating 5 A
Maximum Operating Temperature 85 °C
Max Voltage Rating (AC) 250 V
Max Voltage Rating (DC) 220 V
Min Operating Temperature -40 °C
Mount Through Hole
Number of Contacts 2
Number of Pins 10
Operate Time 4 ms
Packaging Box
Power Consumption 130 mW
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Switching Current 5 A
Termination PC Pin
Throw Configuration DPDT
Voltage Rating (AC) 250 V
Voltage Rating (DC) 220 V
Width 7.2 mm
Win Source Part Number 1033864-3-1393788-3
Categories Signal Relays,Up to 2 Amps
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 3-1393788-3 CAD Model

Description

The TE Connectivity 1033864-3-1393788-3 is a signal relay that has a coil resistance of 178Ω and a coil current of 28.09mA.

  • Current Rating: 2A
  • Throw Configuration: DPDT
  • Mounting: SMD (SMT) technology
  • Maximum Operating Temperature: 85°C
  • Package: DIP
  • Width: 7.2mm
  • Length: 14.5mm
  • Height: 9.9mm
  • Contact Material: ruthenium
  • Contact Plating: gold
  • Supply and Demand Status: limited
