Same model may have multiple batches, images only for reference.

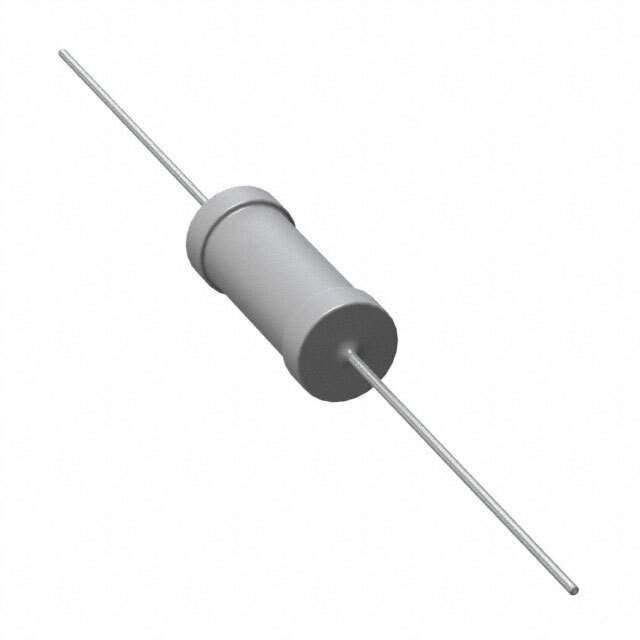

3-1623750-5 Real Image
Same model may have multiple batches, images only for reference.

3-1623750-5

Part No 3-1623750-5
Manufacturer TE Connectivity
Catalog Through Hole Resistors
Description Res Wirewound 7.5 Ohm 5% 7W 0ppm/°C to 60ppm/°C Conformal AXL Thru-Hole Ammo Pack
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package Axial
Composition Power resistor, Wirewound
Diameter 8 mm
ELV Compliant
Lead/Base Style Axial
Lead Diameter 800 µm
Length 22.1996 mm
Maximum Operating Temperature 200 °C
Max Power Dissipation 7 W
Min Operating Temperature -55 °C
Mount Axial, Through Hole
Number of Resistors 1
Number of Terminations 2
Packaging Tape & Box (TB)
Power Rating 7 W
Radiation Hardening No
Resistance 7.5 Ω
RoHS Compliant
Temperature Coefficient 60 ppm/°C
Termination Axial
Tolerance 5 %
Voltage Rating 200 V
Win Source Part Number 1057402-3-1623750-5
Categories Through Hole Resistors
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 3-1623750-5 CAD Model

Description

The TE Connectivity resistor is a wirewound power resistor with a resistance of 7.5Ω and a power rating of 7W.

  • Resistance: 7.5Ω
  • Power Rating: 7W
  • Voltage Rating: 200V
  • Tolerance: 5%
  • Temperature Coefficient: 60 ppm/°C
  • Termination Style: Axial
  • Terminations: 2
  • Mounting Type: SMD (SMT)
  • Package: Tape and Box (TB)
  • Maximum Operating Temperature: 200°C
  • Minimum Operating Temperature: -55°C
  • Diameter: 8mm
  • Length: 22.1996mm
  • Lead Diameter: 800μm
  • Lead/Base Style: Axial
  • RoHS Compliant: Yes
  • ELV Compliant: Yes
  • Alternative Parts: ER586R8JT, RR02J7R5TB, SQPW107R5J, CFM14JT7R50, RSMF1JT7R50, CFM12JT7R50, CP00057R500JE14, TUW7J8R2E, CF14JB7R50, TUW3J8R2EER587R5JT
