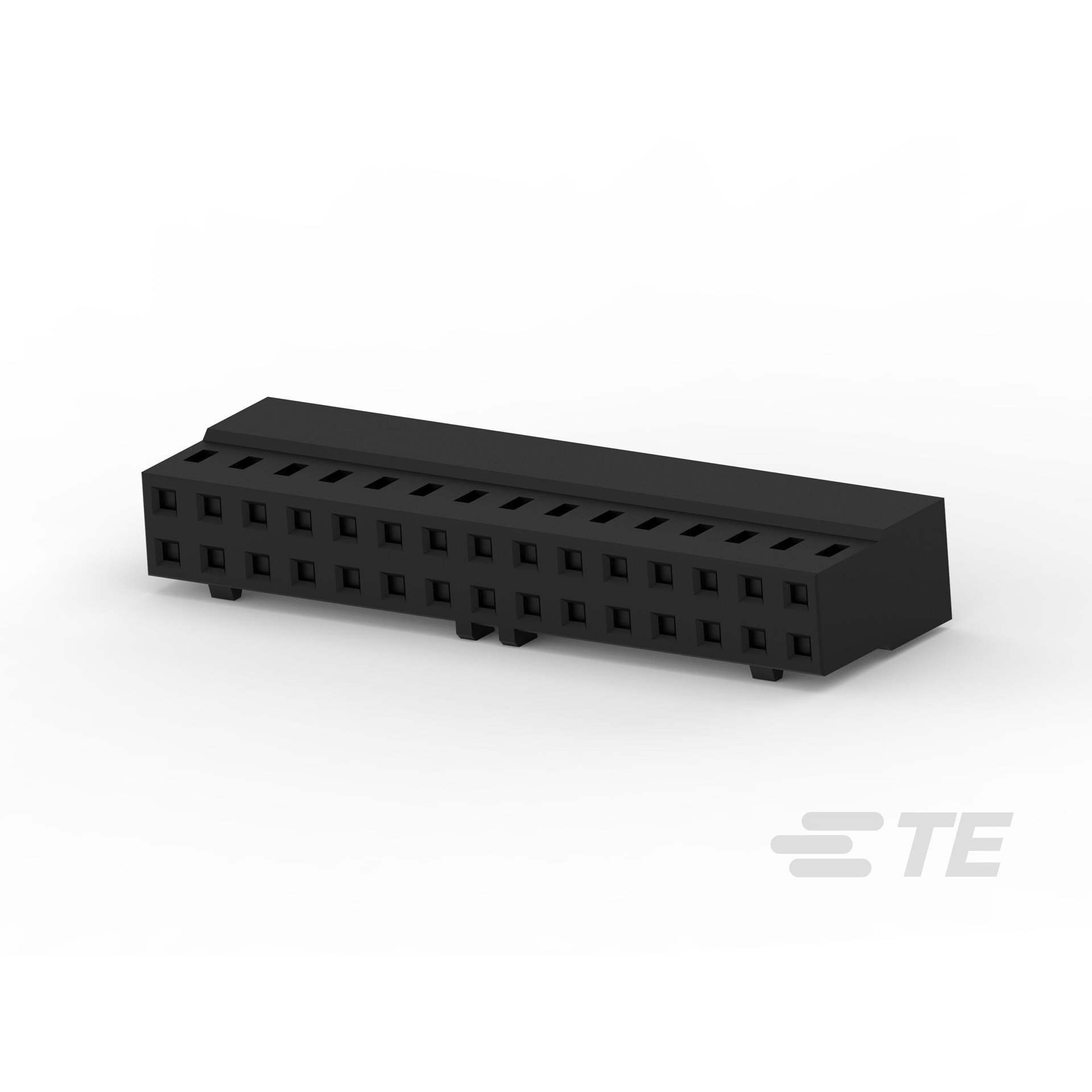

3-2316109-0 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

3-2316109-0

Part No 3-2316109-0
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT HSG 30POS 2.00MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1208547-3-2316109-0
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects-Rectangular Connectors- Rectangular Connector Housings
Package Box
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 30
Pitch 0.079" (2.00mm)
Row Spacing 0.079" (2.00mm)
Mounting Type Free Hanging (In-Line)
Ultra Librarian 3D Model Ultra Librarian 3-2316109-0 CAD Model

Description

30 Rectangular Connectors - Housings Receptacle Black 0.079" (2.00mm)
