3-292208-0
Same model may have multiple batches, images only for reference.

3-292208-0

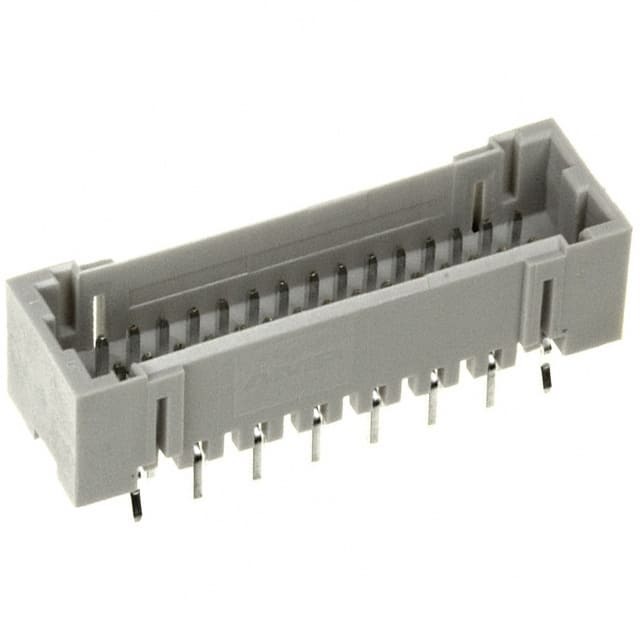

Part No 3-292208-0
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 30POS 1.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series Mini CT
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Number of Positions 30
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.114" (2.90mm)
Contact Length - Post 0.118" (3.00mm)
Insulation Height 0.291" (7.40mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon, Glass Filled
Features Board Guide
Temperature Range - Operating -30°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Gray
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 50VAC
Applications General Purpose
Base Product Number 292208
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 855659-3-292208-0
Ultra Librarian 3D Model Ultra Librarian 3-292208-0 CAD Model

Description

The 855659-3-292208-0 is a male pin header connector from the Mini CT series by TE Connectivity.

  • Series: Mini CT
  • Positions: 30
  • Positions Loaded: All positions
  • Rows: 2
  • Fastening Type: Detent Lock
  • Termination: Kinked Pin and Solder
  • Contact Material: Brass
  • Voltage Rating: 50VAC
  • Flammability: UL94 V-0
  • Application: General-Purpose
  • Pitch: 0.059" (1.50mm)
  • Contact Finish: Tin
  • Post Finish: Tin
  • Mounting: Through-Hole
  • Shrouded: 4 Walls
  • Operating Temperature: -30°C to 105°C
  • Current Rating: Varies by wire gauge
  • Status: Active Product
