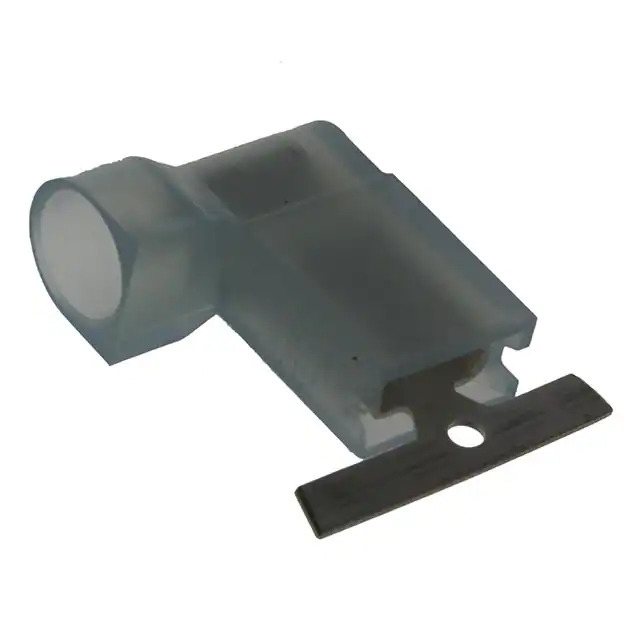

Same model may have multiple batches, images only for reference.

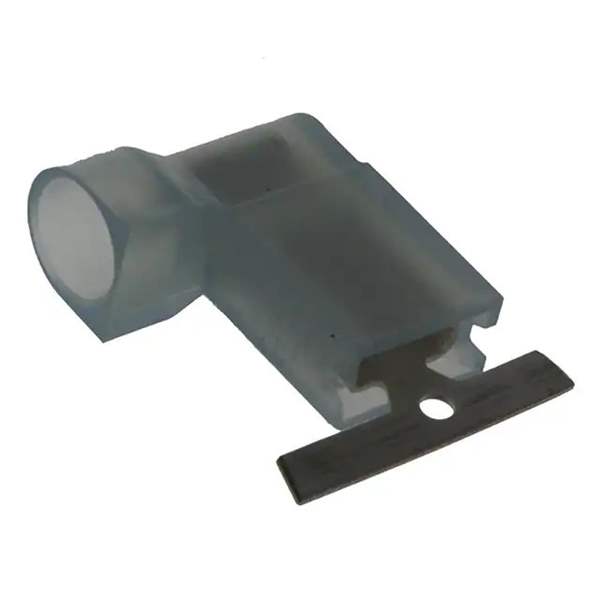

3-520338-2 TE Connectivity
Same model may have multiple batches, images only for reference.

3-520338-2

Part No 3-520338-2
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 14-16AWG 0.187 / 0.187" (4.75mm) Quick Connect Female 14-16 AWG Crimp Connector Fully Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Ultra-Fast
Package Tape & Reel (TR)
Product Status Active
Terminal Type Angled - 90°, Flag
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.020" (0.51mm)
Tab Length -
Length - Overall -
Termination Crimp
Wire Gauge 14-16 AWG
Insulation Fully Insulated
Mounting Type Free Hanging (In-Line), Right Angle
Features -
Color Blue
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.185" (4.70mm)
Base Product Number 520338
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364710-3-520338-2
Ultra Librarian 3D Model Ultra Librarian 3-520338-2 CAD Model

Description

The TE Connectivity AMP Connectors Ultra-Fast series quick disconnect connectors are high-quality components for your electrical connections.

  • Wire Gauge: 14-16 AWG
  • Mounting: Free Hanging (In-Line) and Right Angle
  • Color: Blue
  • Tab Width: 0.187" (4.75mm)
