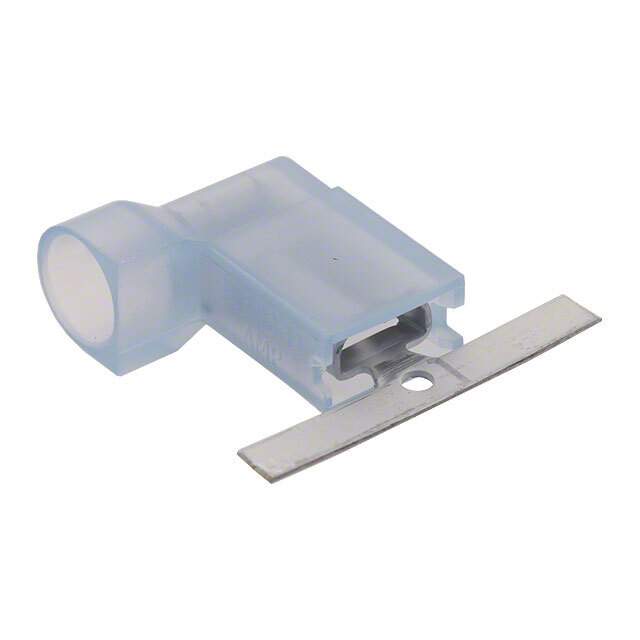

3-520340-2 Real Image
Same model may have multiple batches, images only for reference.

3-520340-2

Part No 3-520340-2
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 14-16AWG 0.187 / 0.187" (4.75mm) Quick Connect Female 14-16 AWG Crimp Connector Fully Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Angled - 90°, Flag
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.032" (0.81mm)
Termination Crimp
Wire Gauge 14-16 AWG
Insulation Fully Insulated
Mounting Free Hanging (In-Line), Right Angle
Color Blue
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.185" (4.70mm)
Base Product Number 520340
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number A27838CT,35203402,-3-520340-2-SI,3-520340-2-ND,A27838TR,2266-3-520340-2TR
Standard Package 2,200
Win Source Part Number 1333522-3-520340-2
Ultra Librarian 3D Model Ultra Librarian 3-520340-2 CAD Model

Description

The female quick disconnect connector is a fully insulated connector that is designed to make quick and secure connections.

  • Manufacturer: TE Connectivity AMP Connectors
  • Win Source Part Number: 1333522-3-520340-2
  • Color: Blue
  • Termination: Crimp
  • Contact Finish: Tin
  • Contact Material: Brass
  • Wire Gauge: 14-16 AWG
  • Terminal Type: Angled 90-degree Flag
  • Tab Width: 0.187 inches (4.75mm)
  • Tab Thickness: 0.032 inches (0.81mm)
  • Mounting: Free-Hanging In-Line and Right Angle Mounted
  • Standard Package: 2,200
  • ECCN: EAR99 compliant
  • RoHS Compliant: Yes
