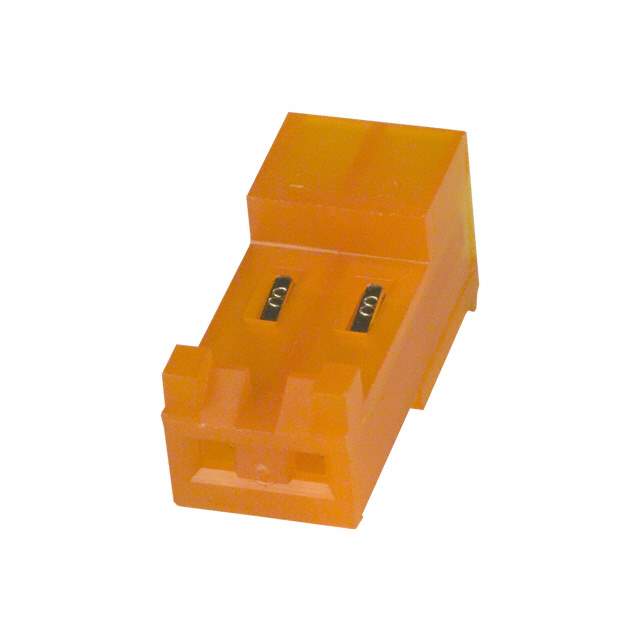

Same model may have multiple batches, images only for reference.

3-643817-2

Name: 3-643817-2
Brand: TE Connectivity
SKU: 1334382
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	3-643817-2
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN RCPT 2POS IDC 18AWG TIN / 2 Position Rectangular Receptacle Connector IDC Tin 18 AWG
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Free Hanging, Panel Mount
Manufacturer	TE Connectivity AMP Connectors
Packaging	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	2
Pitch	0.156" (3.96mm)
Number of Rows	1
Mounting	Free Hanging (In-Line)
Fastening Type	Locking Ramp
Cable Termination	IDC
Wire Type	Discrete or Ribbon Cable
Wire Gauge	18 AWG
Features	Closed End, Polarizing Key
Contact Finish	Tin
Contact Finish Thickness	80.0µin (2.03µm)
Color	Orange
Base Product Number	643817
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.8000
Other Part Number	A31355,3-643817-2-ND,36438172,2266-3-643817-2
Standard Package	500
Win Source Part Number	1334382-3-643817-2
Ultra Librarian 3D Model	Ultra Librarian 3-643817-2 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors 643817-2 is a free hanging, panel mount, female socket type rectangular connector with 2 positions and a pitch of 0.156" (3.96mm).

Mounting: free hanging, panel mount
Contact Type: female socket
Positions: 2
Pitch: 0.156" (3.96mm)
End: closed end
Feature: polarizing key
Fastening Type: locking ramp
Contact Finish: tin
Thickness: 80.0µin (2.03µm)
Wire Gauge: 18 AWG
Wire Type: discrete or ribbon cable
Temperature Range: -55°C to 100°C
ECCN Compliant: EAR99
ROHS3 Compliant: yes
