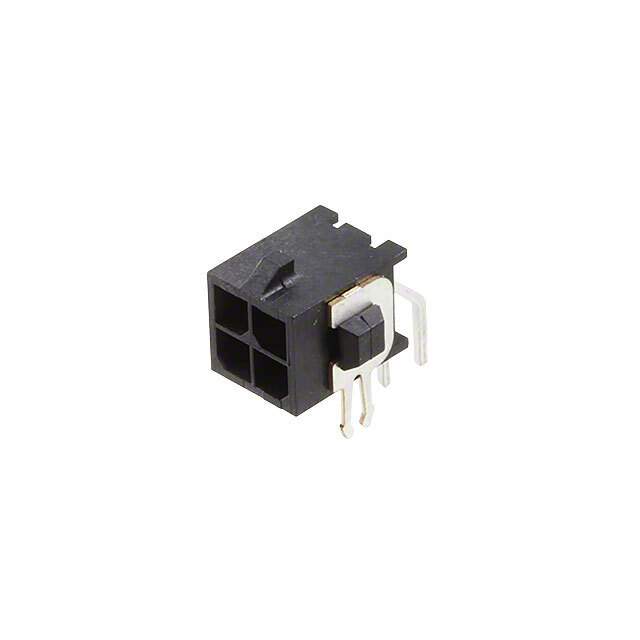

3-794677-4 Real Image
Same model may have multiple batches, images only for reference.

3-794677-4

Part No 3-794677-4
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 4POS 3MM / Connector Header Through Hole, Right Angle 4 position 0.118" (3.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 4
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.290" (7.37mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Board Lock
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250V
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications General Purpose
Base Product Number 794677
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -3-794677-4-CSI,A108381,2266-3-794677-4,-3-794677-4-SI
Standard Package 377
Win Source Part Number 1334471-3-794677-4
Ultra Librarian 3D Model Ultra Librarian 3-794677-4 CAD Model

Description

This header male pin is manufactured by TE Connectivity AMP Connectors and has a part number of 1334471-3-794677-4.

  • Category: Headers, Male Pins
  • Number of Positions: 4
  • Voltage Rating: 250V
  • Operating Temperature: -40°C to 105°C
  • Contact Finish: Tin
  • Packaging: Tray
