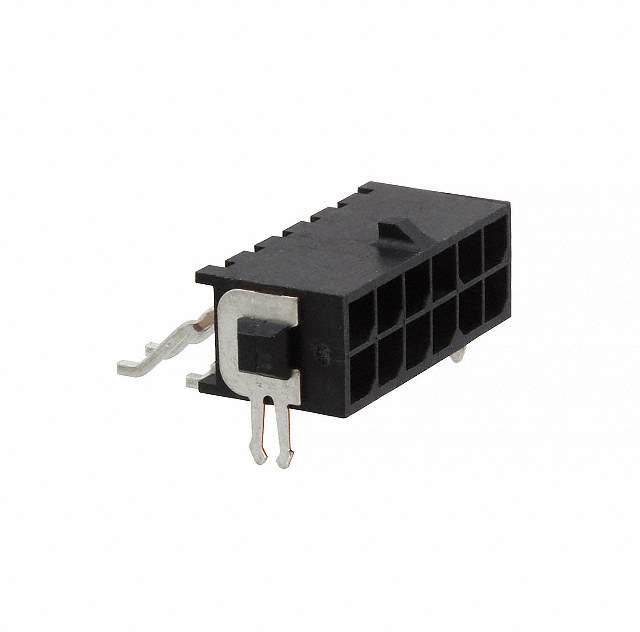

4-794626-2 Real Image
Same model may have multiple batches, images only for reference.

4-794626-2

Part No 4-794626-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADR 12POS DL R/A 30AU SMD
Datasheet
4-794626-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series Micro MATE-N-LOK
Packaging Reel package
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 12
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.290" (7.37mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30μin (0.76μm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Board Lock
Operating Temperature Range -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 5A
Voltage Rating 250VAC
Contact Finish Thickness - Post 100μin (2.54μm)
Applications General Purpose, Industrial, Lighting
Win Source Part Number 763703-4-794626-2
Family Name 794626
Introduction Date May 31, 2005
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2024
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 4-794626-2 CAD Model

Description

The TE Connectivity AMP Connectors 763703-4-794626-2 is a Micro MATE-N-LOK series header connector with 12 positions loaded in 2 rows.

  • Board Lock: yes
  • Locking Ramp: yes
  • Contact Material: brass
  • Plating (Mating): gold
  • Plating (Post): tin
  • Voltage Rating: 250VAC
  • Current Rating: 5A
  • Pitch: 0.118" (3.00mm)
  • Insulation Material: Polyamide (PA), Nylon
  • Suitable For: general purpose, industrial, and lighting applications
  • Mounting Style: surface mount and right angle
  • Insulation Color: black
  • Material Flammability Rating: UL94 V-0
  • Halogen-Free Standards: compliant
  • Popularity: popular
  • Supply and Demand: balance
  • Estimated EOL Date: 2024
