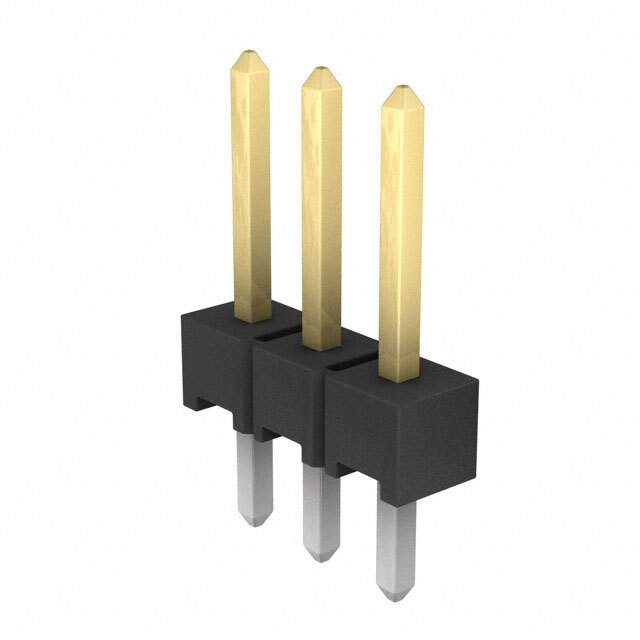

This header connector is a part of the AMPMODU Mod II series and has 3 male pins.

• Series: AMPMODU Mod II
• Pins: 3 male
• Design: breakaway
• Termination: soldered
• Pitch: 0.100" (2.54mm)
• Shrouded: unshrouded
• Contact Finish (Mating): gold
• Contact Finish Thickness (Mating): 30.0µin (0.76µm)
• Contact Finish (Post): tin
• Contact Finish Thickness (Post): 100.0µin (2.54µm)
• Insulation Material: liquid crystal polymer (LCP)
• Material Flammability Rating: UL94 V-0
• Temperature Range: -65°C to 105°C
• Current Rating: 3A
• Packaging: bulk
• Standard Package: 540
• Alternative Parts: 42227-1038, HTSW-103-07-L-S, 5-146276-3, HTSW-103-07-G-S, HTSW-103-07-F-S, 5-146280-3, and 5-146277-35-146281-3
