Same model may have multiple batches, images only for reference.

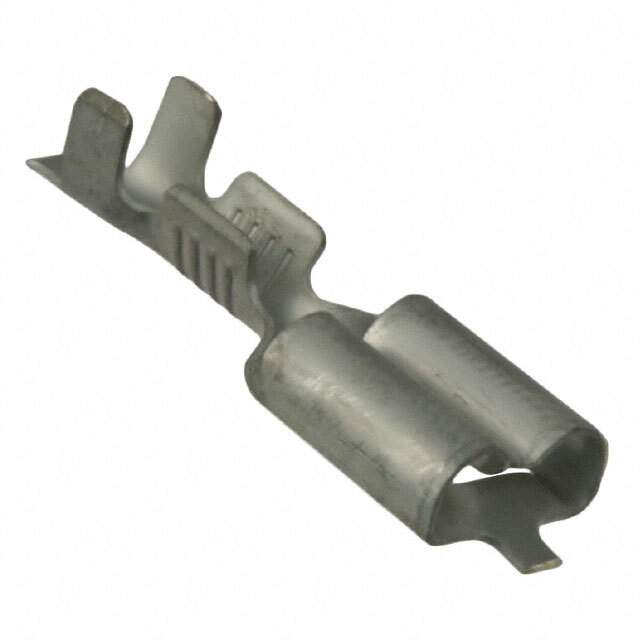

5-160526-7 Real Image
Same model may have multiple batches, images only for reference.

5-160526-7

Part No 5-160526-7
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 15.5-20AWG 0.250 / 0.250" (6.35mm) Quick Connect Female 15.5-20 AWG Crimp Connector Non-Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.305" (7.75mm)
Length - Overall 0.756" (19.20mm)
Termination Crimp
Wire Gauge 15.5-20 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line)
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.091" ~ 0.130" (2.31mm ~ 3.30mm)
Base Product Number 160526
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 5-160526-7-ND,2266-5-160526-7,51605267,A100643CT,A100643TR
Standard Package 5,000
Win Source Part Number 1333480-5-160526-7
Ultra Librarian 3D Model Ultra Librarian 5-160526-7 CAD Model

Description

The TE Connectivity AMP Connectors 5-160526-7 is a female quick connect terminal that is widely used in electronic circuits.

  • Insulation: non-insulated
  • Packaging: reel
  • Mounting: free hanging (in-line)
  • Standard Package: 5,000
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
