Part No 5227677-1
Manufacturer TE Connectivity
Catalog Coaxial Connectors (RF)

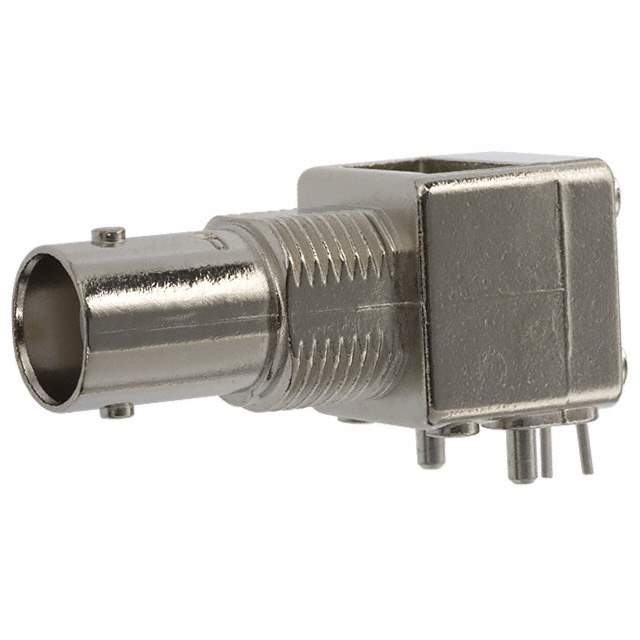

Description CONN BNC JACK R/A 50 OHM PCB
Datasheet
5227677-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Style BNC
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50 Ohm
Mounting Panel Mount, Through Hole, Right Angle
Mounting Feature Bulkhead - Front Side Nut
Fastening Type Bayonet Lock
Frequency - Max 4GHz
Housing Color Silver
Body Material Zinc
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polymethylpentene (PMP)
Operating Temperature Range -55°C ~ 85°C
Center Contact Material Phosphor Bronze
Voltage Rating 500V
Mating Cycles 500
Win Source Part Number 763938-5227677-1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5227677-1 CAD Model

Description

The TE Connectivity AMP Connectors electronic component is a BNC connector type.

  • Voltage Rating: 500V
  • Frequency Max: 4GHz
  • Housing Color: Silver
  • Body Material: Zinc
  • Connector Style: Bayonet Lock
  • Fastening Type: Solder
  • Impedance: 50 Ohm
  • Mounting: Bulkhead-Front Side Nut
