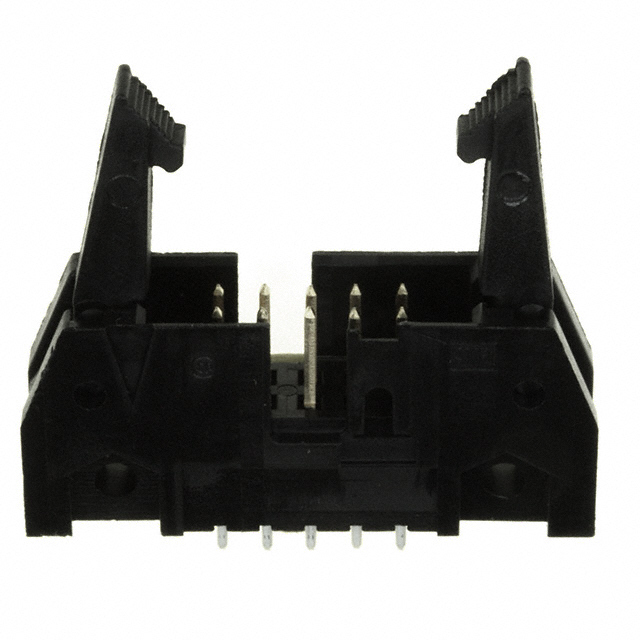

Same model may have multiple batches, images only for reference.

5499206-1

Name: 5499206-1
Brand: TE Connectivity
SKU: 1477448
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	5499206-1
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	Connector Header Through Hole 10 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Mfr	TE Connectivity AMP Connectors
Series	AMP-Latch
Packaging	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Lock/Eject Hooks, Long
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.110" (2.79mm)
Overall Contact Length	0.639" (16.23mm)
Insulation Height	0.549" (13.94mm)
Contact Shape	Square
Contact Finish - Mating	Gold or Gold-Palladium
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Features	Keying Slot, Mounting Flange
Temperature Range - Operating	-65°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	1A
Voltage Rating	250VAC
Contact Finish Thickness - Post	100.0µin (2.54µm)
Base Product Number	5499206
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1477448-5499206-1
Ultra Librarian 3D Model	Ultra Librarian 5499206-1 CAD Model
