Same model may have multiple batches, images only for reference.

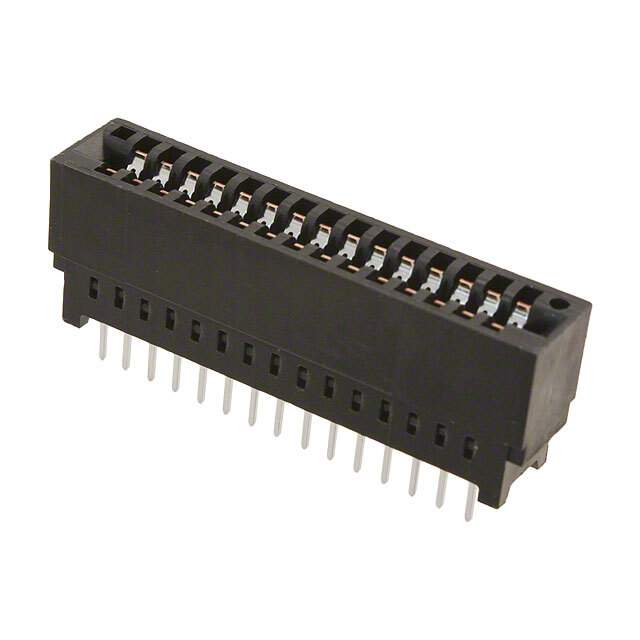

5530843-2 Real Image
Same model may have multiple batches, images only for reference.

5530843-2

Part No 5530843-2
Manufacturer TE Connectivity
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN CARDEDGE FEMALE 30POS 0.100
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 16 Weeks
Features 30 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
Manufacturer TE Connectivity
Series Standard Edge II
Package Bulk
Operating Temperature Range -55°C ~ 85°C
Mounting Through Hole
Family Name 5530843
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 55308432, 2266-5530843-2, A31715, -5530843-2-SI
Quantity per package 216
Popularity High
Supply and Demand Status Balance
Win Source Part Number 907436-5530843-2
Ultra Librarian 3D Model Ultra Librarian 5530843-2 CAD Model

Description

The 907436-5530843-2 is a 30 position female connector used in various applications and manufactured by TE Connectivity.

  • Positions: 30
  • Series: Standard Edge II
  • Operating Temperature: -55°C ~ 85°C
  • Supply and Demand Status: Balanced
  • Quantity per Package: 216
  • Package Type: Bulk
  • Mounting Type: Through Hole
  • Category: Connectors
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
  • Estimated Production Lead Time: 16 weeks
