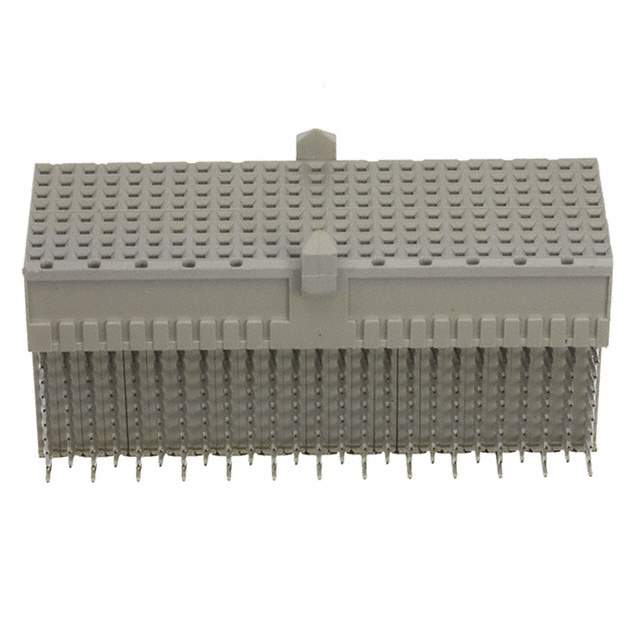

5646759-1 Real Image
Same model may have multiple batches, images only for reference.

5646759-1

Part No 5646759-1
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN RECEPT 200POS 2MM PRESS-FIT  /  200 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - Hard Metric, Standard
Mfr TE Connectivity AMP Connectors
Series Z-PACK
Package Tube
Connector Type Receptacle, Female Sockets
Connector Style DE 25
Number of Positions 200
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 8
Mounting Type Through Hole, Right Angle
Termination Press-Fit
Connector Usage Backplane
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Current Rating (Amps) 1.5 A
Voltage Rating 750Vrms
Temperature Range - Operating -55°C ~ 125°C
Features Upper Shield
Base Product Number 5646759
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names A97823,-5646759-1-SI
Standard Package 10
Win Source Part Number 1021936-5646759-1
Ultra Librarian 3D Model Ultra Librarian 5646759-1 CAD Model

Description

The Z-PACK series from TE Connectivity AMP Connectors is a set of standard hard metric backplane connectors.

  • Connector Type: Female Socket Receptacle
  • Positions: 200
  • Rows: 8
  • Pitch: 2.00mm
  • Shield: Upper Shield
  • Voltage Rating: 750Vrms
  • Current Rating: 1.5A
  • Contact Finish: Gold
  • Finish Thickness: 30.0µin (0.76µm)
  • Termination: Press-Fit
  • Connector Style: DE 25
  • Mounting: Through-Hole at a Right Angle
  • Operating Temperature Range: -55°C to 125°C
  • ECCN: EAR99
  • Package: Tube (10 connectors)
