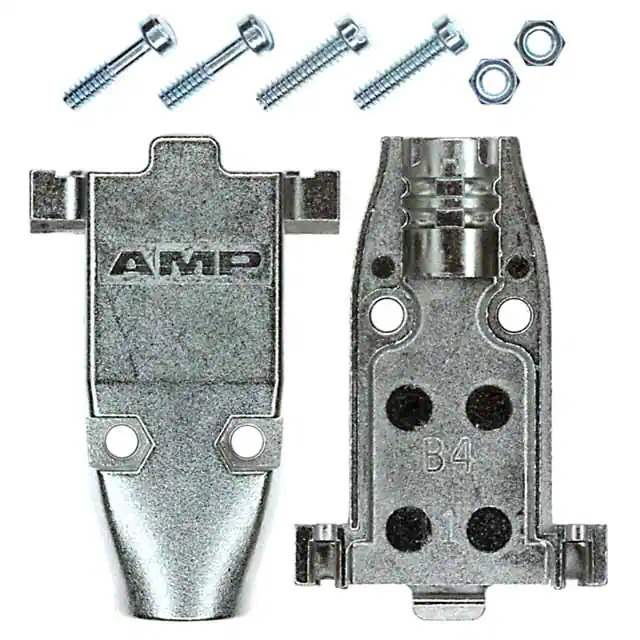

5745171-5 Real Image
Same model may have multiple batches, images only for reference.

5745171-5

Part No 5745171-5
Manufacturer TE Connectivity
Catalog D - Sub, D - Shaped Connectors - Backshells, Hoods
Description CONN BACKSHELL 9POS 180DEG SHLD / 9 Position Two Piece Backshell Connector Silver 180° Shielded
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub, D-Shaped Connector Backshells, Hoods
Mfr TE Connectivity
Series AMPLIMITE
Package Bulk
Product Status Active
Accessory Type Two Piece Backshell
Number of Positions 9
Cable Type Round
Cable Exit 180°
Shielding Shielded
Material Metal, Zinc Alloy
Plating Nickel over Copper
Hardware Assembly Hardware, Strain Relief
Features Mating Screws 4-40
Color Silver
Base Product Number 5745171
Standard Package 1 pcs
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 907495-5745171-5
Ultra Librarian 3D Model Ultra Librarian 5745171-5 CAD Model

Description

The AMPLIMITE series from TE Connectivity offers a two-piece backshell for D-Sub, D-Shaped connectors.

  • Series: AMPLIMITE
  • Type: Backshell
  • Connector Type: D-Sub, D-Shaped
  • Positions: 9
  • Color: Silver
  • Mating Screws: 4-40 Thread
  • Material: Metal, Zinc Alloy
  • Plating: Nickel over Copper
  • Cable Exit Angle: 180°
  • Cable Type: Round Cables
  • Shielding: Yes
  • Package: Bulk
  • Includes: Assembly Hardware, Strain Relief
  • Operating Temperature: -55°C to 105°C
  • REACH: Affected
  • Standard Package: 1 piece
  • Manufacturer: TE Connectivity
