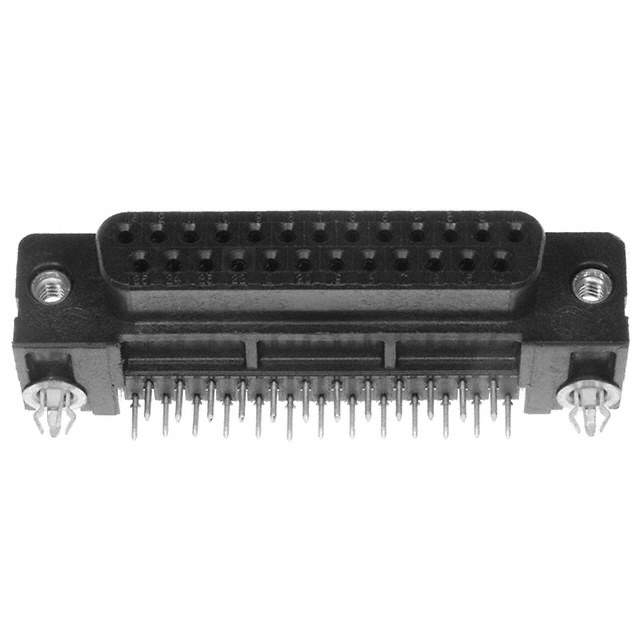

5748901-1 Real Image
Same model may have multiple batches, images only for reference.

5748901-1

Part No 5748901-1
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 25POS R/A SLDR / 25 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 25
Number of Rows 2
Mounting Through Hole, Right Angle
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination Solder
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Backset Spacing 0.318" (8.08mm)
Features Board Lock
Voltage Rating 125V
Color Black
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 5748901
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number A33975,57489011
Standard Package 65
Win Source Part Number 1333239-5748901-1
Ultra Librarian 3D Model Ultra Librarian 5748901-1 CAD Model

Description

TE Connectivity AMP Connectors presents a D-Sub Connector Assembly that comes with board lock and is available in black color.

  • Board Lock: Yes
  • Color: Black
  • Connector Type: Receptacle with female sockets
  • Contact Type: Signal
  • Rows: Two
  • Termination: Soldering
  • Contact Finish: Gold with a thickness of 30.0μin (0.76μm)
  • Contact Material: Phosphor Bronze
  • Connector Style: D-Sub
  • Voltage Rating: 125V
  • Flammability Rating: UL94 V-0
  • Standard Packaging: 65
  • Mounting Style: Through Hole, Right Angle
  • Backset Spacing: 0.318 inches (8.08mm)
  • Temperature Range: -55°C to 105°C
