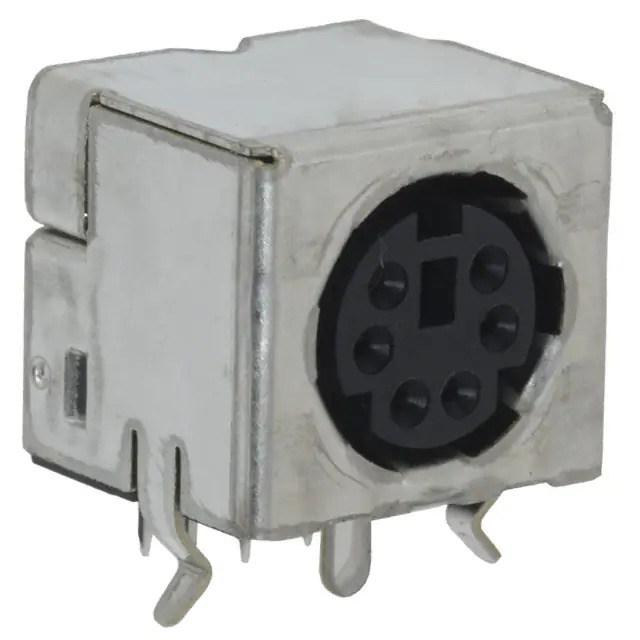

5749180-1 TE Connectivity
Same model may have multiple batches, images only for reference.

5749180-1

Part No 5749180-1
Manufacturer TE Connectivity
Catalog Circular Connectors - Assemblies
Description CONN RCPT FMALE MINI DIN 6P SLDR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr TE Connectivity AMP Connectors
Series -
Package Tube
Product Status Active
Connector Type Receptacle, Female Sockets
Number of Positions 6
Shell Size - Insert Mini DIN
Shell Size, MIL -
Mounting Type Through Hole, Right Angle
Mounting Feature -
Termination Solder
Fastening Type Push-Pull
Orientation Keyed
Primary Material Plastic
Shell Material Thermoplastic
Shell Finish -
Contact Finish - Mating Gold
Color -
Ingress Protection -
Material Flammability Rating UL94 V-0
Features Board Lock
Shielding Shielded
Current Rating (Amps) 1A
Voltage Rating 30VDC
Cable Opening -
Temperature Range - Operating -55°C ~ 105°C
Backshell Material, Plating -
Contact Material Copper Alloy
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insert Material -
Applications Audio, Video
Base Product Number 5749180
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1366125-5749180-1
Ultra Librarian 3D Model Ultra Librarian 5749180-1 CAD Model

Description

The TE Connectivity AMP Connectors Circular Connector Assembly is a high-quality electronic component designed for various applications such as audio and video from TE Connectivity AMP Connectors.

  • Connector Type: Receptacle
  • Gender: Female Sockets
  • Termination: Solder
  • Current Rating: 1A
  • Voltage Rating: 30VDC
  • Shielded: Yes
  • Shell Material: Thermoplastic
  • Shell Size: Mini DIN
  • Fastening Type: Push-Pull
  • Contact Finish: Gold
  • Flammability Rating: UL94 V-0
