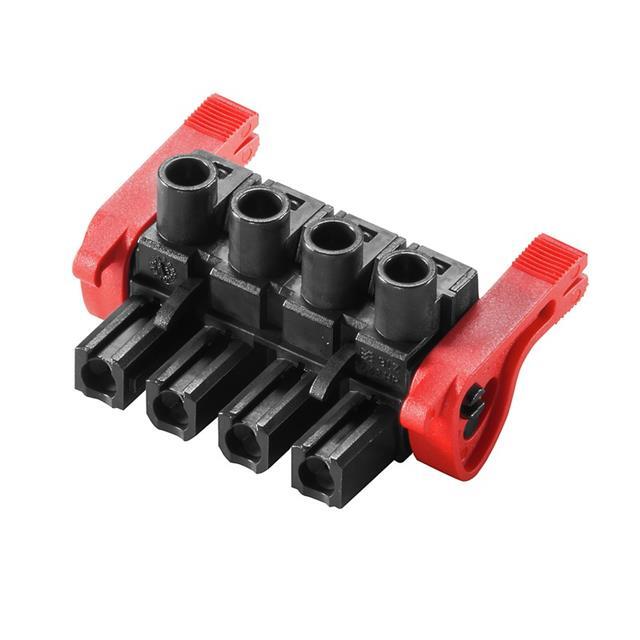

Same model may have multiple batches, images only for reference.
1093460000 Weidmuller – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

1093460000

Part No 1093460000
Manufacturer Weidmuller
Catalog Headers, Plugs and Sockets
Description 5 Position Terminal Block Plug, Female Sockets 0.300" (7.62mm) 180° Free Hanging (In-Line)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Weidmüller
Series Omnimate BL
Packaging Bulk
Type Plug, Female Sockets
Number of Positions 5
Positions Per Level 5
Number of Levels 1
Pitch 0.300" (7.62mm)
Plug Wire Entry 180°
Termination Style Screw - Clamping Yoke (Tension Sleeve)
Mounting Type Free Hanging (In-Line)
Current - IEC 29A
Voltage - IEC 630 V
Current - UL 20 A
Voltage - UL 600 V
Wire Gauge or Range - AWG 12-20 AWG
Wire Gauge or Range - mm2 0.2-4mm²
Color Black
Temperature Range - Operating -50°C ~ 100°C
Contact Mating Finish Tin
Features Ejector Latches, Retention Latches (Non-Wire Side)
Material Flammability Rating UL94 V-0
Ingress Protection IP20
Screw Size M2.5
Torque - Screw 0.4-0.5 Nm (3.5-4.4 Lb-In)
Wire Strip Length 7mm
Contact Material Copper Alloy
Housing Material Polybutylene Terephthalate (PBT)
Insulation Height 0.719" (18.26mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1481229-1093460000
Ultra Librarian 3D Model Ultra Librarian 1093460000 CAD Model
