Same model may have multiple batches, images only for reference.

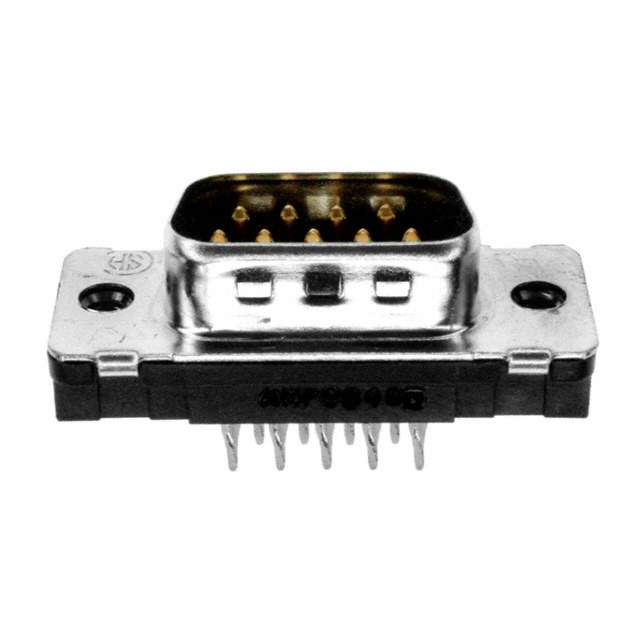

5786830-1 Real Image
Same model may have multiple batches, images only for reference.

5786830-1

Part No 5786830-1
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 9POS VERT PRESS / 9 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Through Hole
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination Press-Fit
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Material Flammability Rating UL94 V-0
Features Grounding Indents
Color Black
Dielectric Material Polyamide (PA), Nylon
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 5786830
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 57868301,A32052
Standard Package 130
Win Source Part Number 1333210-5786830-1
Ultra Librarian 3D Model Ultra Librarian 5786830-1 CAD Model

Description

The TE Connectivity AMP Connectors 1333210-5786830-1 is a D-sub connector assembly with a plug and male pins.

  • Positions: 9
  • Rows: 2
  • Termination: Press-Fit
  • Contact Finish: Gold
  • Contact Material: Copper Alloy
  • Connector Style: D-Sub
  • Shell Material: Steel with a tin-plated finish
  • Flammability Rating: UL94 V-0
  • Temperature Range: -55°C to 105°C
  • RoHS Compliant: Yes
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • HTSUS Code: 8536.69.4040
