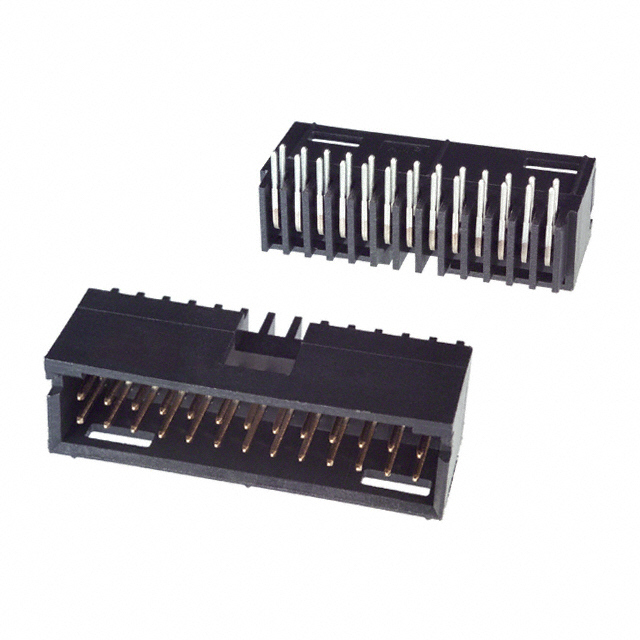

Same model may have multiple batches, images only for reference.

6-103634-5

Name: 6-103634-5
Brand: TE Connectivity
SKU: 1627062
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	6-103634-5
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors - Headers, Male Pins
Description	CONN HEADER R/A 16POS 2.54MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	16
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.130" (3.30mm)
Insulation Height	0.200" (5.08mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Thermoplastic
Features	Keying Slot
Temperature Range - Operating	-65°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Package	Tube
Supply and Demand Status	Normal
Win Source Part Number	1627062-6-103634-5
Ultra Librarian 3D Model	Ultra Librarian 6-103634-5 CAD Model
