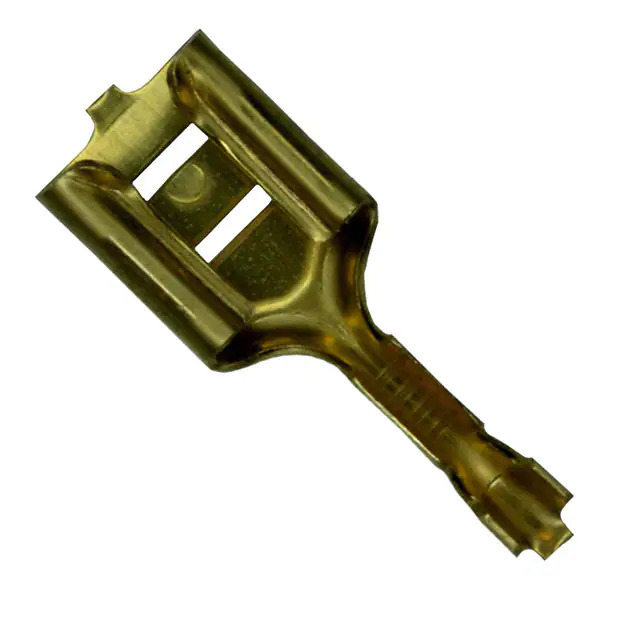

61202-1 TE Connectivity
Same model may have multiple batches, images only for reference.

61202-1

Part No 61202-1
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 22-26AWG 0.250 / 0.250" (6.35mm) Quick Connect Female 22-26 AWG Crimp Connector Non-Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.305" (7.75mm)
Length - Overall 0.755" (19.18mm)
Termination Crimp
Wire Gauge 22-26 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Brass
Contact Finish -
Insulation Diameter 0.040" ~ 0.060" (1.02mm ~ 1.52mm)
Base Product Number 61202
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364914-61202-1
Ultra Librarian 3D Model Ultra Librarian 61202-1 CAD Model

Description

The TE Connectivity AMP Connectors Faston 61202 is a quick disconnect connector designed for use in connectors and interconnects.

  • Mounting Type: Free Hanging (In-Line)
  • Wire Gauge: 22-26 AWG
  • Contact Material: Brass
  • Terminal Type: Standard
  • Connector Gender: Female
  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Overall Length: 0.755" (19.18mm)
  • Tab Length: 0.305" (7.75mm)
  • Insulation Diameter: 0.040" to 0.060" (1.02mm to 1.52mm)
  • Insulation: Non-Insulated
  • Termination: Crimp
  • Package: Tape & Reel (TR)
  • Product Status: Active
