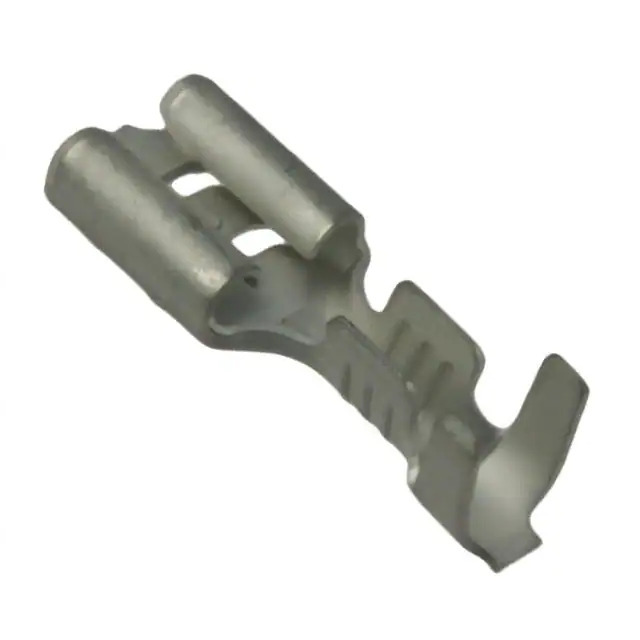

61758-2 TE Connectivity
Same model may have multiple batches, images only for reference.

61758-2

Part No 61758-2
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 16-20AWG 0.187 / 0.187" (4.75mm) Quick Connect Female 16-20 AWG Crimp Connector Non-Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.250" (6.35mm)
Length - Overall 0.585" (14.86mm)
Termination Crimp
Wire Gauge 16-20 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.090" ~ 0.130" (2.29mm ~ 3.30mm)
Base Product Number 61758
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1365096-61758-2
Ultra Librarian 3D Model Ultra Librarian 61758-2 CAD Model

Description

The TE Connectivity AMP Connectors Quick Disconnect Terminal is designed for use in quick connect and quick disconnect applications.

  • Wire Gauge: 16-20 AWG
  • Contact Finish: Tin
  • Length: 0.585" (14.86mm)
  • Tab Width: 0.187" (4.75mm)
  • Contact Material: Brass
  • Insulation Type: Non-Insulated
  • Product Status: Active
  • Series: Faston
