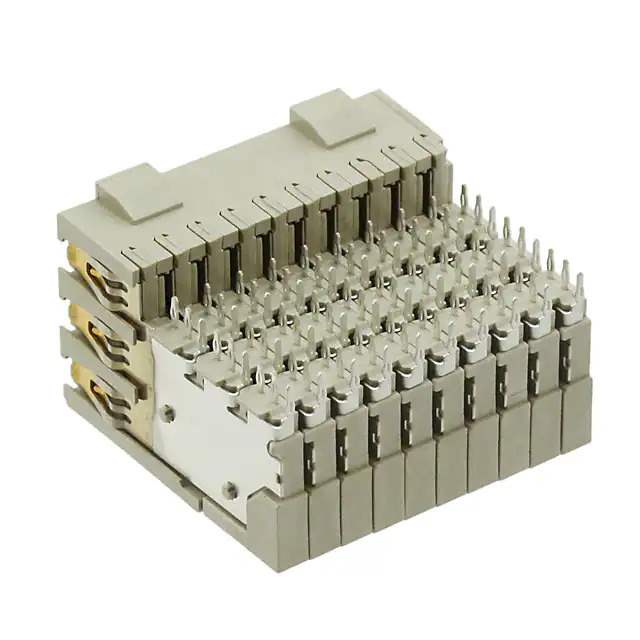

The 843079-6469081-1 is a specialized backplane connector from TE Connectivity.

• Category: Connectors, Interconnects - Backplane Connectors - Specialized
• Positions: 60
• Pitch: 0.098" (2.50mm)
• Connector Type: Receptacle with Female Sockets
• Positions Loaded: All
• Rows: 6
• Termination: Press-Fit
• Contact Finish: Gold with a thickness of 30.0µin (0.76µm)
• Package: Tube
• Standard Package: 20 pieces
• Feature: High-Speed Connector
• Voltage Rating: 250V
• Material Flammability Rating: UL94 V-0
• Connector Usage: Daughtercard
• Columns: 10
• Contact Layout: Typical
• Mounting Type: Board Edge, Through Hole, Right Angle
• Operating Temperature Range: -65°C to 105°C
• MSL Level: 1 (Unlimited)
• Current Rating: 0.700A
• HTSUS Code: 8536.69.4040
• Product Status: Active
