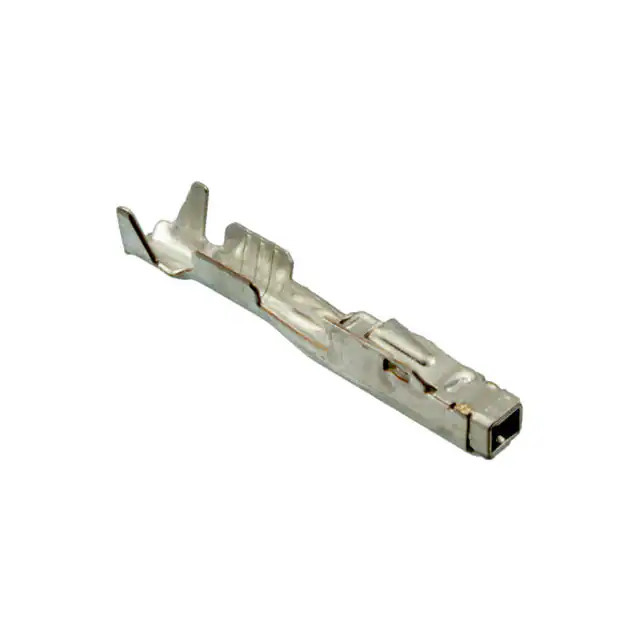

Same model may have multiple batches, images only for reference.

7-1452656-1

Name: 7-1452656-1
Brand: TE Connectivity
SKU: 1363420
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	7-1452656-1
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN SOCKET 20AWG CRIMP TIN / Socket Contact Tin 20 AWG Crimp Stamped
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Contacts
Mfr	TE Connectivity AMP Connectors
Series	MCON
Package	Tape & Reel (TR)
Product Status	Active
Type	Stamped
Pin or Socket	Socket
Contact Termination	Crimp
Wire Gauge	20 AWG
Contact Finish	Tin
Contact Finish Thickness	39.4µin (1.00µm)
Base Product Number	1452656
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.90.4000
Win Source Part Number	1363420-7-1452656-1
Ultra Librarian 3D Model	Ultra Librarian 7-1452656-1 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors rectangular connector contacts are essential components for your electronic projects.

Product Name: TE Connectivity AMP Connectors rectangular connector contacts
Manufacturer: TE Connectivity AMP Connectors
Wire Gauge: 20 AWG
Contact Termination: Crimp
Contact Finish: Tin
Contact Finish Thickness: 39.4µin (1.00µm)
Series: MCON
Packaging: Tape and Reel
Product Status: Active
ECCN: Compliant
