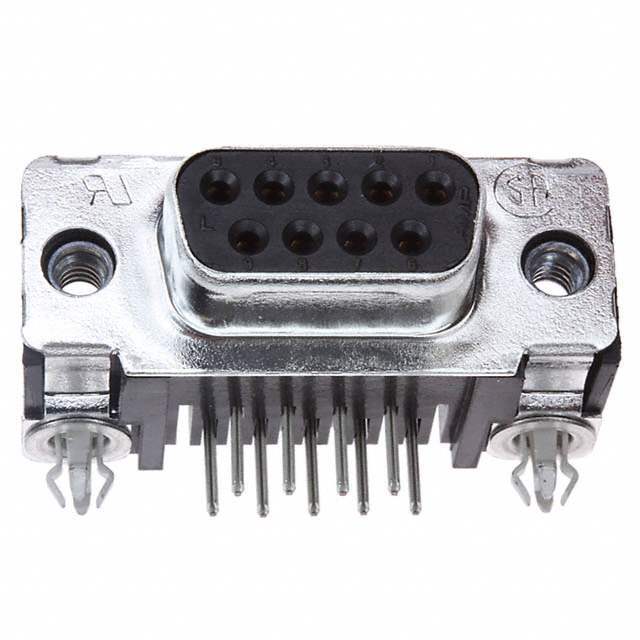

Same model may have multiple batches, images only for reference.

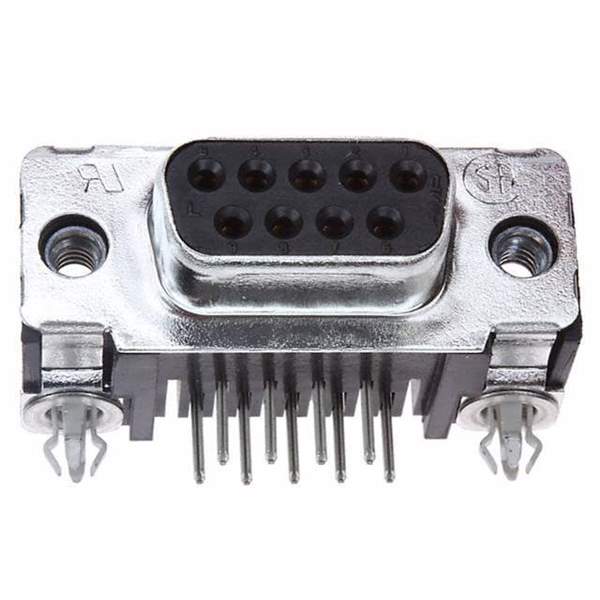

747844-4 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

747844-4

Part No 747844-4
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 9POS R/A SLDR
Datasheet
747844-4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects >D-Sub, D-Shaped Connectors >D-Sub Connector Assemblies
Mfr TE Connectivity AMP Connectors
Packaging Tray
Part Status Active
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E)
Ultra Librarian 3D Model Ultra Librarian 747844-4 CAD Model

Description

9 Position D-Sub Receptacle, Female Sockets Connector
