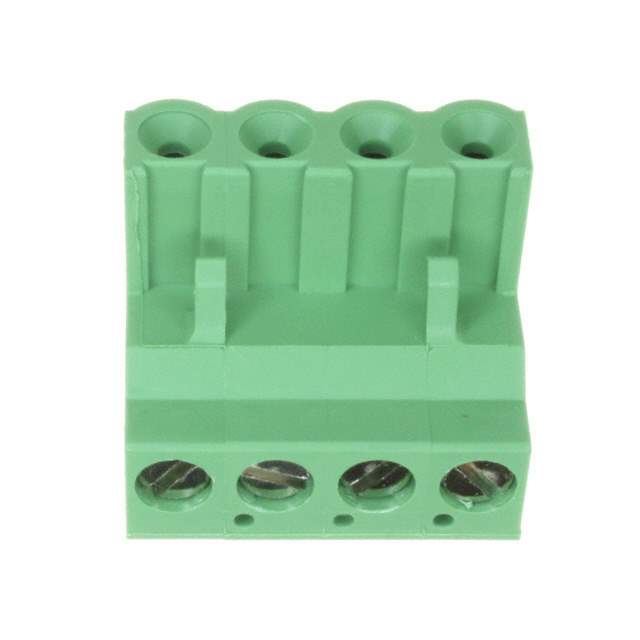

Same model may have multiple batches, images only for reference.

796634-4

Name: 796634-4
Brand: TE Connectivity
SKU: 551062
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	796634-4
Manufacturer	TE Connectivity
Catalog	Terminal Blocks
Description	TERMINAL BLOCK, PLUG, STACKING, 5.08mm PITCH \| TERM BLOCK PLUG 4POS STR 5.08MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	TE Connectivity AMP Connectors
Packaging	Bulk
Type	Plug, Female Sockets
Number of Positions	4
Positions Per Level	4
Number of Levels	1
Pitch	0.200" (5.08mm)
Plug Wire Entry	180°
Termination Style	Screw - Rising Cage Clamp
Mounting Style	Free Hanging (In-Line)
Current - UL	15A
Voltage - UL	300V
Wire Gauge or Range - AWG	12-30 AWG
Wire Gauge or Range - mm2	0.05-3mm2
Color	Green
Temperature Range - Operating	-40°C ~ 110°C
Contact Mating Finish	Tin
Features	Retention Latches (Non-Wire Side)
Material Flammability Rating	UL94 V-0
Screw Size	M3
Torque - Screw	0.79 Nm (7.0 Lb-In)
Wire Strip Length	6-7.5mm
Contact Material	Phosphor Bronze
Dielectric Material	Polyamide (PA66), Nylon 6/6
Insulation Height	0.610" (15.49mm)
Manufacturer Pack Quantity	150
MSL Level	1 (Unlimited)
Win Source Part Number	1133750-796634-4
Manufacturer Homepage	www.macom.com
Popularity	Medium
Supply and Demand Status	Limited
Application Field	Used in Industrial
Ultra Librarian 3D Model	Ultra Librarian 796634-4 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors 796634-4 is a 4-position female socket plug designed for use in industrial applications.

Position: 4
Gender: Female
Application: Industrial
Pitch: 0.200" (5.08mm)
Wire Gauge: 12-30 AWG or 0.05-3mm2
Retention Latches: (non-wire side)
Termination Style: Screw-rising cage clamp
Current: Up to 15A (UL)
Voltage: Up to 300V (UL)
Temperature Range: -40°C to 110°C
Dielectric Material: Polyamide (PA66), nylon 6/6
Torque Screw: 0.79 Nm (7.0 Lb-In)
Screw Size: M3
Supply and Demand Status: Limited
Popularity: Popular in the market
