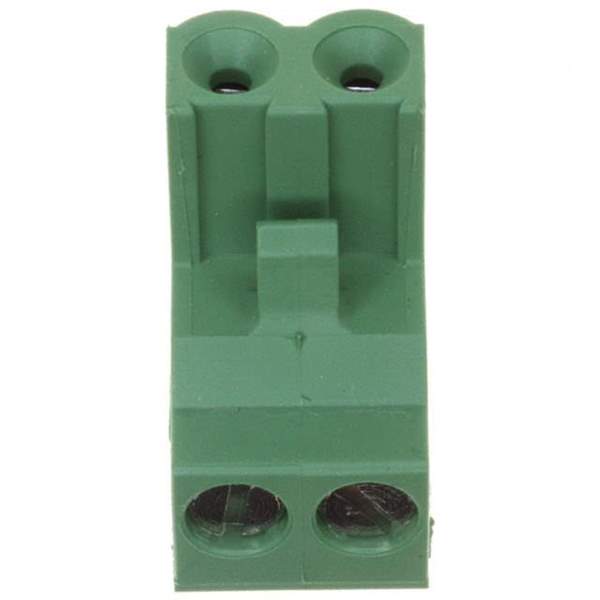

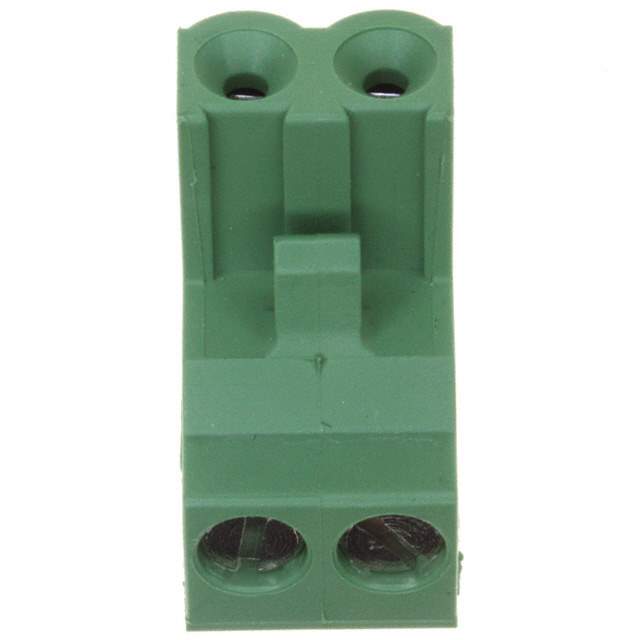

796640-2 Real Image
Same model may have multiple batches, images only for reference.

796640-2

Part No 796640-2
Manufacturer TE Connectivity
Catalog Terminal Blocks
Description TERMINAL BLOCK PLUG, STACKING 5.00mm PITCH | TERM BLOCK PLUG 2POS STR 5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Type Plug, Female Sockets
Number of Positions 2
Positions Per Level 2
Number of Levels 1
Pitch 0.197"
Plug Wire Entry 180°
Termination Style Screw - Rising Cage Clamp
Mounting Style Free Hanging (In-Line)
Current - UL 15A
Voltage - UL 300V
Wire Gauge or Range - AWG 12-30 AWG
Wire Gauge or Range - mm2 0.05-3mm2
Color Green
Temperature Range - Operating -40°C ~ 110°C
Contact Mating Finish Tin
Features Retention Latches (Non-Wire Side), Side Stacking
Material Flammability Rating UL94 V-0
Screw Size M3
Torque - Screw 0.79 Nm (7.0 Lb-In)
Wire Strip Length 6-7.5mm
Contact Material Phosphor Bronze
Dielectric Material Polyamide (PA66), Nylon 6/6
Insulation Height 0.610" (15.49mm)
Manufacturer Pack Quantity 300
MSL Level 1 (Unlimited)
Win Source Part Number 1133751-796640-2
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian 796640-2 CAD Model

Description

This electronic component is a plug, female sockets manufactured by TE Connectivity AMP Connectors.

  • Manufacturer: TE Connectivity AMP Connectors
  • Positions per Level: 2
  • Number of Levels: 1
  • Pitch: 0.197 inches
  • Termination Style: Screw - Rising Cage Clamp
  • Mounting Style: Free Hanging (In-Line)
  • Voltage Rating: 300V
  • Current Rating: 15A
  • Wire Gauge/Range: 12-30 AWG
  • Wire Strip Length: 6-7.5mm
  • Operating Temperature: -40°C to 110°C
  • Popularity: Popular
  • Supply and Demand: Balanced
  • Application: Industrial
