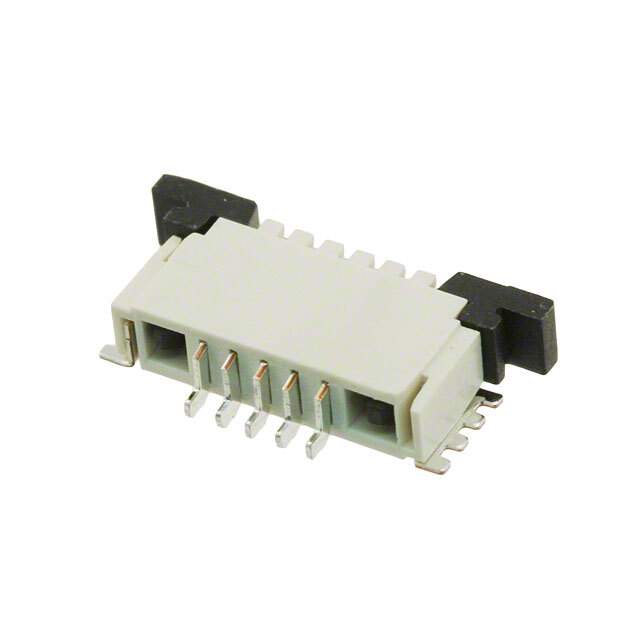

Same model may have multiple batches, images only for reference.

84953-5

Name: 84953-5
Brand: TE Connectivity
SKU: 1333282
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	84953-5
Manufacturer	TE Connectivity
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC TOP 5POS 1.00MM R/A / 5 Position FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer	TE Connectivity AMP Connectors
Packaging	Reel - TR
Flat Flex Type	FPC
Mounting	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top
Number of Positions	5
Pitch	0.039" (1.00mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.101" (2.56mm)
Locking Feature	Slide Lock
Cable End Type	Straight
Contact Material	Phosphor Bronze
Contact Finish	Tin
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material	Polyamide (PA), Nylon, Glass Filled
Features	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	200V
Temperature Range - Operating	-40°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	1A
Contact Finish Thickness	78.7µin (2.00µm)
Housing Color	Natural
Actuator Color	Black
Base Product Number	84953
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	A101399DKR,A101399CT,A101399TR,849535,84953-5-ND,-84953-5-SI
Standard Package	1,500
Win Source Part Number	1333282-84953-5
Ultra Librarian 3D Model	Ultra Librarian 84953-5 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors 1333282-84953-5 is a 5-position FPC connector assembly.

Pitch: 1.00mm
Locking Mechanism: Slide Lock
Height Above Board: 2.56mm
Voltage Rating: 200V
FFC/FPC Thickness: 0.30mm
Termination Type: Solder
Contact Material: Phosphor Bronze
Contact Finish: Tin
Housing Material: Liquid Crystal Polymer (LCP) and Glass-Filled
Actuator Material: Polyamide (PA), Nylon, Glass-Filled
RoHS Compliant: True
Temperature Range: -40°C to 85°C
