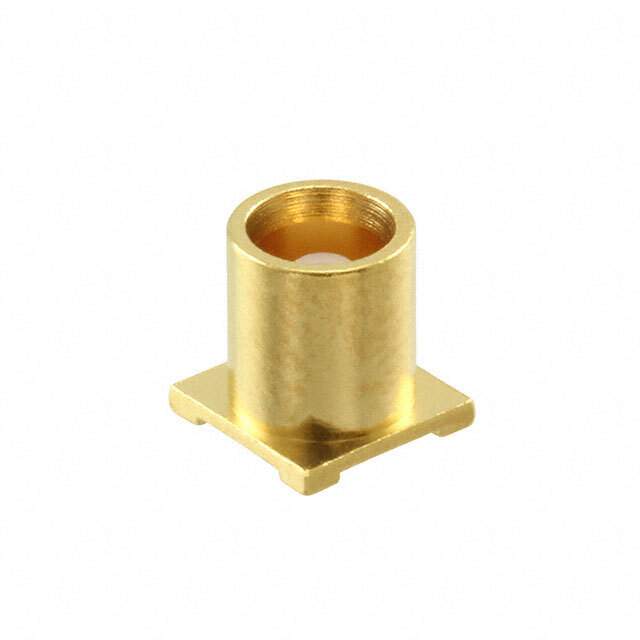

966851-1 Real Image
Same model may have multiple batches, images only for reference.

966851-1

Part No 966851-1
Manufacturer TE Connectivity
Catalog Coaxial Connectors (RF)
Description CONN MCX JACK STR 50 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Supply and Demand Status Sufficient
Win Source Part Number 801631-966851-1
Popularity High
MSL Level 1 (Unlimited)
Manufacturer Pack Quantity 800
Insertion Loss 0.1dB
Mating Cycles 500
Voltage Rating 335V
Center Contact Material Phosphor Bronze
Temperature Range - Operating -65°C ~ 165°C
Dielectric Material Polytetrafluoroethylene (PTFE)
Center Contact Plating Gold
Body Finish Gold
Body Material Brass
Housing Color Gold
Number of Ports 1
Frequency - Max 6GHz
Fastening Type Snap-On
Mounting Style SMD
Impedance 50Ohm
Shield Termination Solder
Contact Termination Solder
Connector Type Jack, Female Socket
Connector Style MCX
Packaging Reel
Manufacturer TE Connectivity AMP Connectors
Ultra Librarian 3D Model Ultra Librarian 966851-1 CAD Model

Description

The TE Connectivity AMP Connectors 966851-1 is a female socket jack with a snap-on fastening type.

  • Connector Type: MCX
  • Maximum Frequency: 6GHz
  • Voltage Rating: 335V
  • Impedance: 50Ohm
  • Body Material: Brass, Gold Finish
  • Contact Termination: Solder
  • Shield Termination: Solder
  • Center Contact Material: Phosphor Bronze, Gold Plating
  • Dielectric Material: PTFE
  • Temperature Range: -65 to 165 degrees Celsius
  • Housing Color: Gold
  • Packaging: Reel
  • Manufacturer Pack Quantity: 800
  • Popularity: High
  • Supply and Demand: Sufficient
  • MSL Level: 1 (unlimited)
