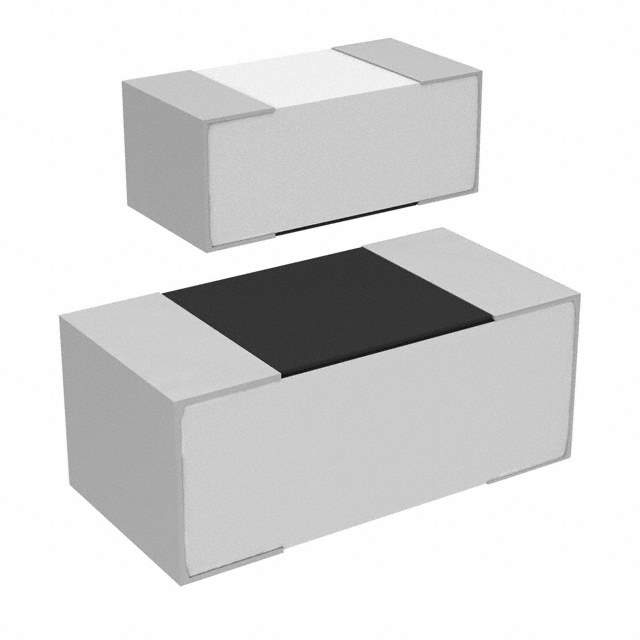

CPF0201D402RE1 Real Image
Same model may have multiple batches, images only for reference.

CPF0201D402RE1

Part No CPF0201D402RE1
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series CPF, Neohm
Package Tape & Reel (TR)
Resistance 402 Ohms
Tolerance ±0.5%
Power (Watts) 0.03W, 1/32W
Composition Thin Film
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0201 (0603 Metric)
Supplier Device Package 0201
Dimension 0.023" L x 0.011" W (0.58mm x 0.29mm)
Height - Seated (Max) 0.011" (0.28mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1315668-CPF0201D402RE1
Ultra Librarian 3D Model Ultra Librarian CPF0201D402RE1 CAD Model

Description

Neohm's CPF Chip Resistor is a thin-film resistor that is designed to meet the needs of different applications.

  • Resistance: 402 Ohms
  • Tolerance: ±0.5%
  • Temperature Coefficient: ±25ppm/°C
  • Power Rating: 0.03W
  • Package: Tape and Reel
  • ECCN: EAR99
  • MSL Level: 1
  • Dimensions: 0.023" L x 0.011" W (0.58mm x 0.29mm)
