Same model may have multiple batches, images only for reference.

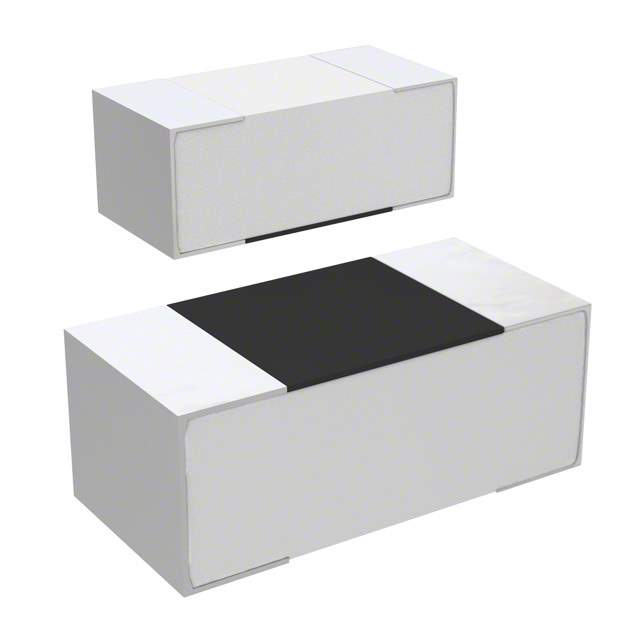

CRG0402F820R Real Image
Same model may have multiple batches, images only for reference.

CRG0402F820R

Part No CRG0402F820R
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description RES SMD 820 OHM 1% 1/16W 0402  /  820 Ohms ±1% 0.063W, 1/16W Chip Resistor 0402 (1005 Metric) Thick Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series CRG, Neohm
Package Tape & Reel (TR)
Resistance 820 Ohms
Tolerance ±1%
Power (Watts) 0.063W, 1/16W
Composition Thick Film
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.016" (0.40mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names 9-1676480-1,9-1676480-1-ND
Standard Package 10,000
Win Source Part Number 1142278-CRG0402F820R
Ultra Librarian 3D Model Ultra Librarian CRG0402F820R CAD Model

Description

The TE Connectivity Passive Product chip resistor is a high-quality electronic component with a power rating of 0.063W, 1/16W and a tolerance of ±1%.

  • Power Rating: 0.063W, 1/16W
  • Tolerance: ±1%
  • Resistance: 820 Ohms
  • Temperature Coefficient: ±100ppm/°C
  • Thickness: 0.016" (0.40mm)
  • Package/Case: 0402 (1005 Metric)
  • Standard Package: 10,000
  • Mounting Type: Surface Mount
  • Operating Temperature: -55°C to 155°C
  • Win Source Part Number: 1142278-CRG0402F820R
