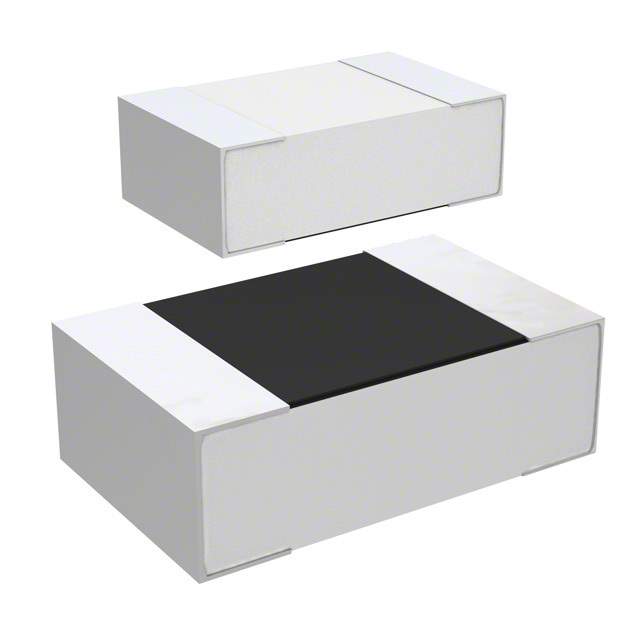

CRG0805F4K7 Real Image
Same model may have multiple batches, images only for reference.

CRG0805F4K7

Part No CRG0805F4K7
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description RES SMD 4.7K OHM 1% 1/8W 0805  /  4.7 kOhms ±1% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Thick Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series CRG, Neohm
Package Tape & Reel
Resistance 4.7 kOhms
Tolerance ±1%
Power (Watts) 0.125W, 1/8W
Composition Thick Film
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
Base Product Number CRG0805
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names A106065DKR,A106065CT,1623239-1,1623239-1-ND,16232391,A106065TR
Standard Package 5,000
Win Source Part Number 1014983-CRG0805F4K7
Ultra Librarian 3D Model Ultra Librarian CRG0805F4K7 CAD Model

Description

The CRG0805F4K7 is a chip resistor from TE Connectivity Passive Product.

  • Series: CRG and Neohm
  • Packaging: tape and reel
  • Resistance: 4.7 kOhms
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.125W (1/8W)
  • Package/Case: 0805 (2012 Metric)
  • Terminations: 2
  • Dimension: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Height Seated (Max): 0.026" (0.65mm)
  • Operating Temperature: -55°C to 155°C
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8533.21.0030
