Same model may have multiple batches, images only for reference.

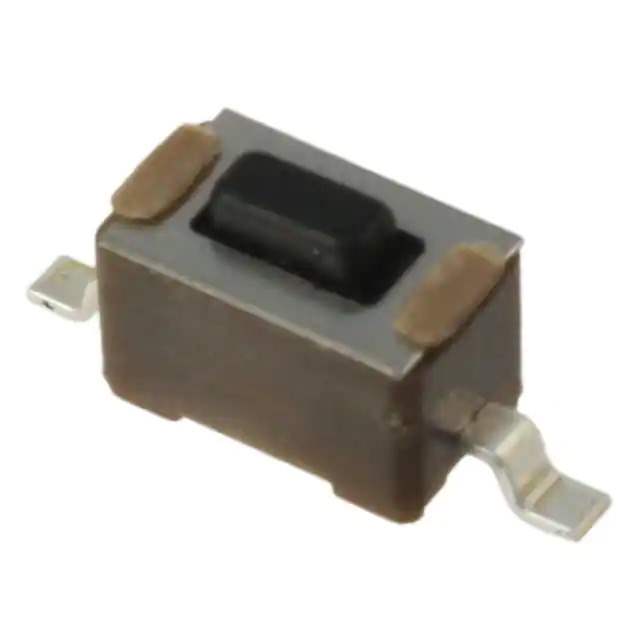

FSMSMTR Real Image
Same model may have multiple batches, images only for reference.

FSMSMTR

Part No FSMSMTR
Manufacturer TE Connectivity
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 24V / Tactile Switch SPST-NO Top Actuated Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr TE Connectivity
Series FSMSM
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 4.57mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 6.00mm x 3.50mm
Illumination Non-Illuminated
Operating Force 180gf
Temperature Range - Operating -35°C ~ 85°C
Actuator Material Polyphenylene Sulfide (PPS)
Switch Travel 0.25mm
Mechanical Life 20,000 Cycles
Base Product Number FSMSM
Standard Package 1,800 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 849362-FSMSMTR
Ultra Librarian 3D Model Ultra Librarian FSMSMTR CAD Model

Description

The FSMSM Tactile Switch is a compact and reliable switch used in various electronic devices.

  • Termination Style: gull-wing
  • Standard Package: 1,800 pcs
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: standard
  • Switch Travel: 0.25mm
  • Contact Rating: 0.05A @ 24VDC
  • Operating Force: 180gf
  • Mechanical Life: 20,000 cycles
  • Mounting: surface mount
  • Operating Temperature Range: -35°C to 85°C
  • Manufacturer: TE Connectivity
  • Status: active
