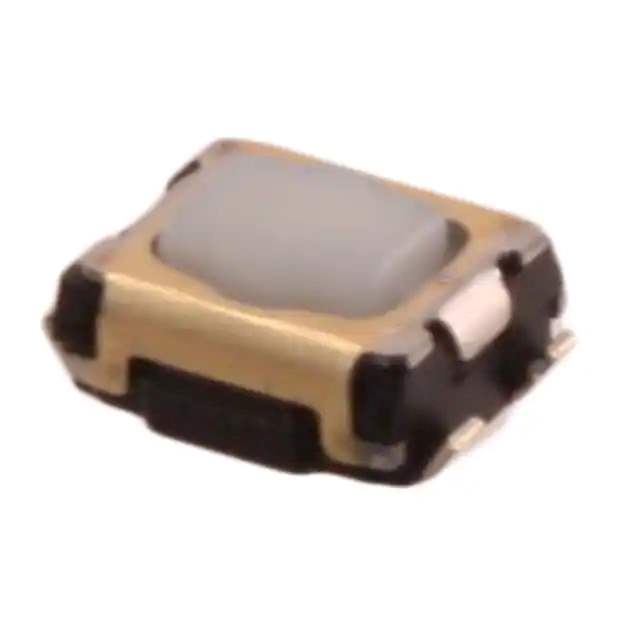

EVP-AA502W Real Image
Same model may have multiple batches, images only for reference.

EVP-AA502W

Part No EVP-AA502W
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.02A 15V / Tactile Switch SPST-NO Top Actuated Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Panasonic
Series EVPAA
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Rectangular Button
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 1.70mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 3.50mm x 2.90mm
Illumination Non-Illuminated
Operating Force 240gf
Features Grounding Pin
Temperature Range - Operating -40°C ~ 85°C
Switch Travel 0.15mm
Mechanical Life 200,000 Cycles
Base Product Number EVP-AA
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 849690-EVP-AA502W
Ultra Librarian 3D Model Ultra Librarian EVP-AA502W CAD Model

Description

The EVP-AA502W is a tactile switch from Panasonic's EVPAA series. It is a J lead termination style switch with a grounding pin feature.

  • Termination Style: J Lead
  • Grounding Pin: Yes
  • Circuit: Single-Pole, Single-Throw Normally Open (SPST-NO)
  • Switch Function: Momentary Off-Mom
  • Actuator Type: Rectangular Button
  • Switch Travel: 0.15mm
  • Contact Rating: 0.02A @ 15VDC
  • Mounting Type: Surface Mount
  • Package: Tape & Reel
  • Temperature Range: -40°C to 85°C
  • Status: Active
