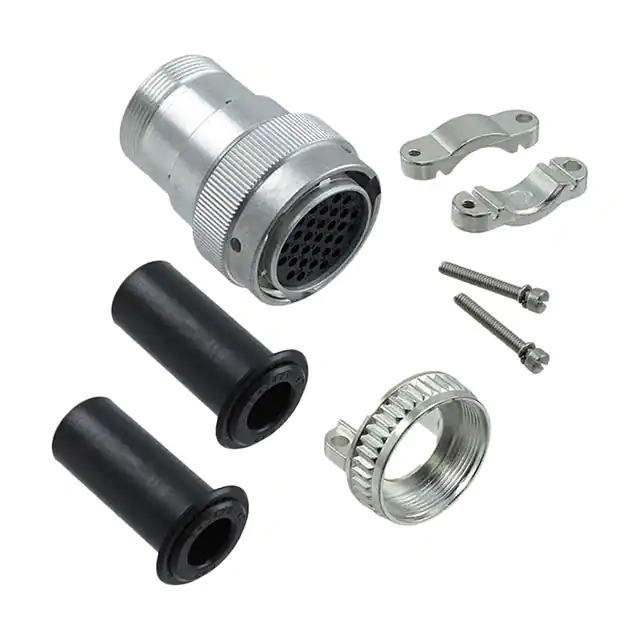

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Housings
Mfr TE Connectivity Deutsch Connectors
Series HD30
Package Bulk
Product Status Active
Connector Type Plug Housing
Type For Female Sockets
Number of Positions 47
Shell Size - Insert 24-47
Shell Size, MIL -
Contact Type Crimp
Contact Size 16 (5), 20 (42)
Mounting Type Free Hanging (In-Line)
Mounting Feature -
Fastening Type Bayonet Lock
Orientation Keyed
Shell Material Aluminum
Shell Finish -
Housing Color Silver
Ingress Protection IP67 - Dust Tight, Waterproof
Material Flammability Rating -
Features Backshell, Cable Clamp
Shielding Unshielded
Note Contacts Not Included
Includes -
Insert Material Polyetherimide (PEI)
Contact Shape Circular
Temperature Range - Operating -55°C ~ 125°C
Base Product Number HD36
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1364340-HD36-24-47SE-059
Ultra Librarian 3D Model Ultra Librarian HD36-24-47SE-059 CAD Model

Description

The HD36-24-47SE-059 is a circular connector housing from TE Connectivity Deutsch Connectors.

  • Manufacturer: TE Connectivity Deutsch Connectors
  • Product: HD36-24-47SE-059
  • Series: HD30
  • Gender: Female
  • Features: Backshell and Cable Clamp
  • Shell Size: 24-47
  • Material: Aluminum
  • Color: Silver
  • Product Status: Active
  • REACH: Affected
  • ECCN: EAR99
  • Shielding: Unshielded
  • Fastening Type: Bayonet Lock
  • IP Rating: IP67
  • Housing Material: Polyetherimide (PEI)
  • Contacts Included: No
