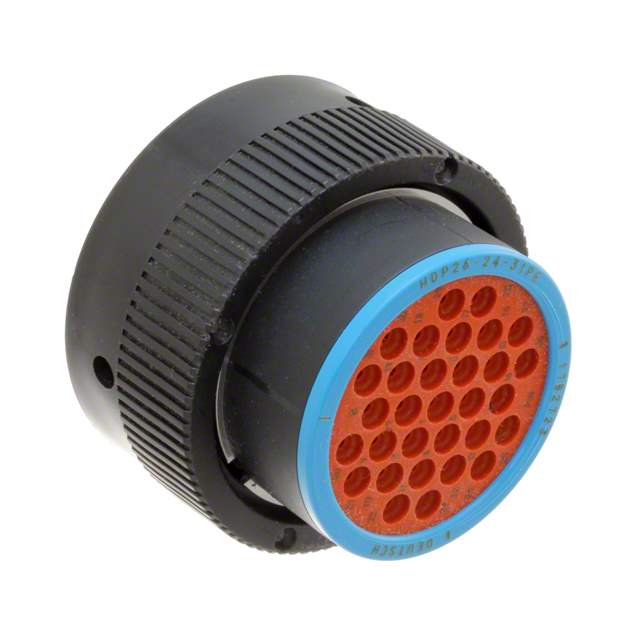

HDP26-24-31PE Real Image
Same model may have multiple batches, images only for reference.

HDP26-24-31PE

Part No HDP26-24-31PE
Manufacturer TE Connectivity
Catalog Circular Connectors - Housings
Description CONN PLUG HSG MALE 31POS INLINE / 31 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors>Circular Connector Housings
Manufacturer TE Connectivity Deutsch Connectors
Packaging Bulk
Connector Type Plug Housing
Type For Male Pins
Number of Positions 31
Shell Size - Insert 24-31
Contact Type Crimp
Contact Size 16
Mounting Free Hanging (In-Line)
Fastening Type Bayonet Lock
Orientation Keyed
Shell Material Polyamide (PA66), Nylon 6/6, Glass Filled
Housing Color Black
Ingress Protection IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-1
Features Coupling Nut
Shielding Unshielded
Note Contacts Not Included
Insert Material Polyetherimide (PEI)
Contact Shape Circular
Temperature Range - Operating -55°C ~ 125°C
Base Product Number HDP26
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.6000
Other Part Number -HDP26-24-31PE-SI,1734-1185
Standard Package 40
Win Source Part Number 1334556-HDP26-24-31PE
Ultra Librarian 3D Model Ultra Librarian HDP26-24-31PE CAD Model

Description

The TE Connectivity Deutsch Connectors HDP26-24-31PE is a 31-position plug housing designed for male pins.

  • Fastening Type: Bayonet Lock
  • Features: Coupling Nut
  • Connector Type: Circular
  • Contact Type: Crimp
  • Housing Material: Polyamide (PA66), Nylon 6/6, Glass-Filled
  • Flammability Rating: UL94 V-1
  • Shell Size Insert: 24-31
  • Orientation: Keyed
  • Ingress Protection: IP68 (Dust Tight and Waterproof)
  • Package: Includes 40 units
  • Mounting: Free Hanging (In-Line)
  • Operating Temperature: -55°C to 125°C
  • Contacts: Not Included
