Same model may have multiple batches, images only for reference.

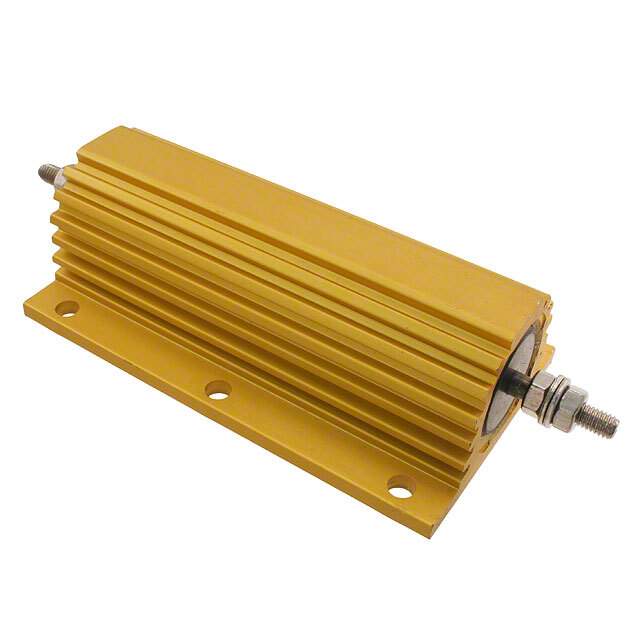

HSC3004R7J Real Image
Same model may have multiple batches, images only for reference.

HSC3004R7J

Part No HSC3004R7J
Manufacturer TE Connectivity
Catalog Chassis Mount Resistors
Description RES CHAS MNT 4.7 OHM 5% 300W  /  4.7 Ohms ±5% 300W Wirewound Chassis Mount Resistor
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr TE Connectivity Passive Product
Series HS, CGS
Package Bulk
Resistance 4.7 Ohms
Tolerance ±5%
Power (Watts) 300W
Composition Wirewound
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Coating, Housing Type Aluminum
Mounting Feature Flanges
Dimension 5.039" L x 2.874" W (128.00mm x 73.00mm)
Height - Seated (Max) 1.654" (42.00mm)
Lead Style Terminal Screw Type
Package / Case Axial, Box
Base Product Number HSC300
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.29.0000
Other Names 116300277,1-1630027-7,1-1630027-7-ND,A102399
Standard Package 2
Win Source Part Number 1169080-HSC3004R7J
Ultra Librarian 3D Model Ultra Librarian HSC3004R7J CAD Model

Description

The TE Connectivity Passive Product HSC300 Chassis Mount Resistor is a highly reliable and durable component that is suitable for use in a wide range of electronic applications.

  • Power Rating: 300W
  • Resistance: 4.7 Ohms
  • Win Source Part Number: 1169080-HSC3004R7J
  • Category: Resistors > Chassis Mount Resistors
  • Tolerance: ±5%
  • Temperature Coefficient: ±50ppm/°C
  • Mounting Feature: Flanges
  • Material: Wirewound
  • Coating: Aluminum
  • Package/Case: Axial, Box
