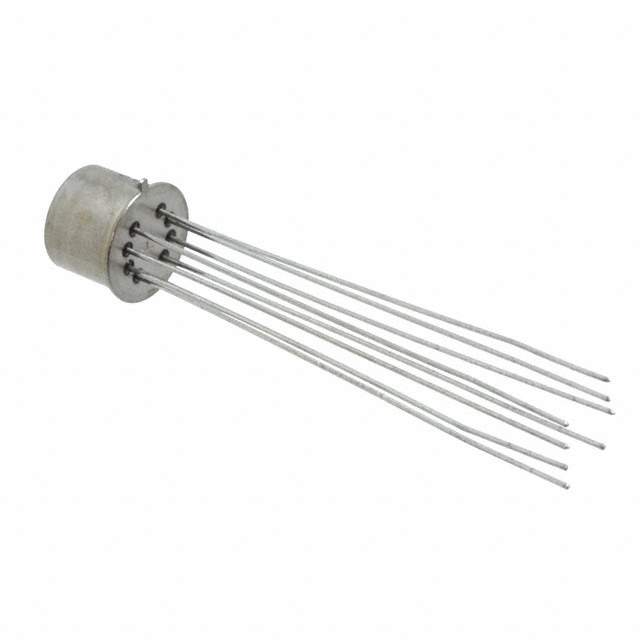

JMACD-26XM Real Image1 JMACD-26XM Real Image2
Same model may have multiple batches, images only for reference.
JMACD-26XM Real Image1 JMACD-26XM Real Image2
JMACD-26XM Real Image1 JMACD-26XM Real Image2
Same model may have multiple batches, images only for reference.

JMACD-26XM

Part No JMACD-26XM
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOS DPDT 1A 26.5VDC / General Purpose Relay DPDT (2 Form C) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Signal Relays, Up to 2 Amps
Mfr TE Connectivity Aerospace, Defense and Marine
Series Military, MIL-R-39016/15, MAD, CII
Package Bulk
Mounting Type Through Hole
Coil Voltage 26.5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 1 A
Switching Voltage 115VAC, 28VDC - Max
Coil Type Non Latching
Features Diode
Termination Style PC Pin
Seal Rating Sealed - Hermetically
Must Operate Voltage 14.2 VDC
Must Release Voltage 1.37 VDC
Operate Time 2 ms
Release Time 4 ms
Temperature Range - Operating -65°C ~ 125°C
Contact Material Silver Palladium (AgPd), Gold (Au)
Relay Type General Purpose
Coil Resistance 1560 Ohms
Base Product Number JMACD
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1316108-JMACD-26XM
Ultra Librarian 3D Model Ultra Librarian JMACD-26XM CAD Model

Description

The TE Connectivity Aerospace, Defense and Marine JMACD-26XM is a general-purpose relay with a DPDT (2 Form C) contact form and silver palladium (AgPd), gold (Au) contact material.

  • Coil Voltage: 26.5VDC
  • Contact Rating (Current): 1A
  • Temperature Range: -65°C ~ 125°C
  • Seal Rating: Sealed-Hermetically Seal
