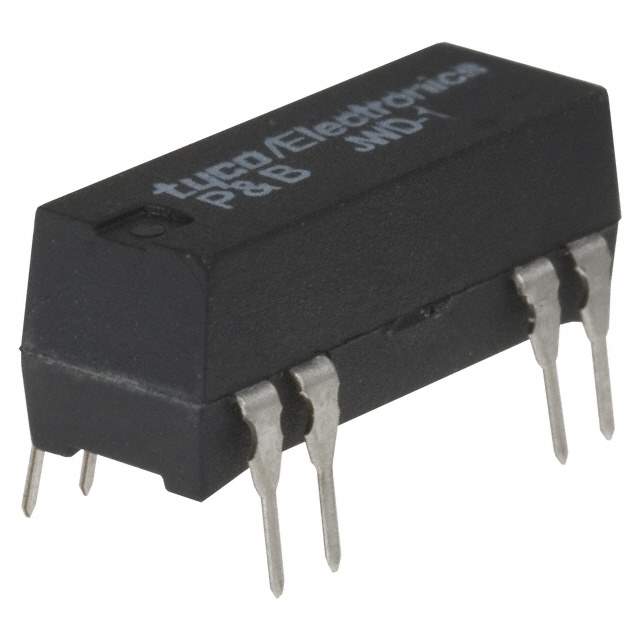

JWD-172-5 Real Image
Same model may have multiple batches, images only for reference.

JWD-172-5

Part No JWD-172-5
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description RELAY REED SPDT 500MA 5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Reed Relays
Mfr TE Connectivity Potter & Brumfield Relays
Series JWD
Package Tray
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 500 mA
Switching Voltage 28VDC - Max
Coil Current 25 mA
Coil Type Non Latching
Features Diode
Termination Style PC Pin
Must Operate Voltage 3.8 VDC
Must Release Voltage 0.5 VDC
Operate Time 1.5 ms
Release Time 3 ms
Temperature Range - Operating -35°C ~ 85°C
Contact Material Ruthenium (Ru)
Coil Resistance 200 Ohms
Base Product Number JWD-172
Other Names 2-1393771-9,PB688,JWD1725,-JWD-172-5-SI
Standard Package 25
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 1237293-JWD-172-5
Ultra Librarian 3D Model Ultra Librarian JWD-172-5 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays 1237293-JWD-172-5 is a reed relay that is designed to be mounted on a PCB.

  • Contact Form: SPDT (1 Form C)
  • Contact Rating: 500 mA
  • Mounting: Through-hole
  • Must Operate Voltage: 3.8 VDC
  • Must Release Voltage: 0.5 VDC
