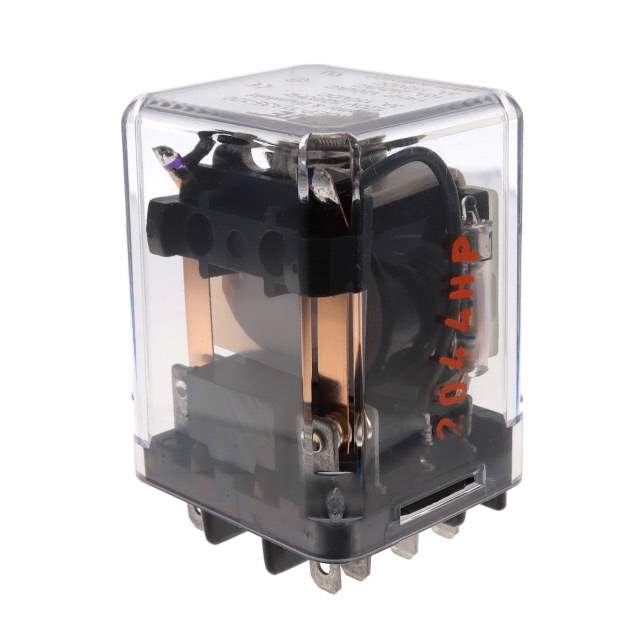

KUEP-11A35-120 Real Image
Same model may have multiple batches, images only for reference.

KUEP-11A35-120

Part No KUEP-11A35-120
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 10A 120V  /  General Purpose Relay DPDT (2 Form C) 120VAC Coil Socketable
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series KUEP
Package Bulk
Mounting Type Socketable
Coil Voltage 120VAC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 10 A
Switching Voltage 150VDC - Max
Coil Current 24 mA
Coil Type Non Latching
Termination Style Plug In, Quick Connect - 0.187" (4.7mm)
Coil Insulation Class B
Must Operate Voltage 102 VAC
Operate Time 15 ms
Release Time 10 ms
Temperature Range - Operating -45°C ~ 45°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 1.7 kOhms
Base Product Number KUEP-11A35
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.49.0075
Other Names KUEP-11A35-120-ND,1423116-2,PB2202
Standard Package 25
Win Source Part Number 1057266-KUEP-11A35-120
Ultra Librarian 3D Model Ultra Librarian KUEP-11A35-120 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays KUEP-11A35-120 is a general purpose relay with a DPDT (2 Form C) contact form.

  • Manufacturer: TE Connectivity Potter & Brumfield Relays
  • Contact Form: DPDT (2 Form C)
  • Switching Voltage: 150VDC - Max
  • Contact Rating: 10 A
  • Coil Voltage: 120VAC
  • Coil Resistance: 1.7 kOhms
  • Operating Temperature Range: -45°C ~ 45°C
