Same model may have multiple batches, images only for reference.

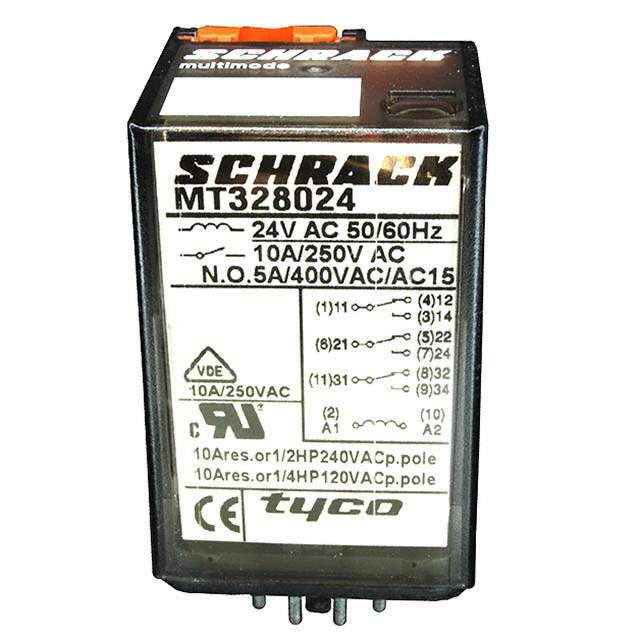

MT333024 Real Image
Same model may have multiple batches, images only for reference.

MT333024

Part No MT333024
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series MT, SCHRACK
Package Tray
Product Status Obsolete
Mounting Type Socketable
Coil Voltage 24VDC
Contact Form 3PDT (3 Form C)
Contact Rating (Current) 10 A
Switching Voltage 400VAC - Max
Coil Current 50 mA
Coil Type Non Latching
Features Lighted Indicator, Test Button
Termination Style Plug In, 11 Pin (Octal)
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 15 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 60°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 475 Ohms
Base Product Number MT33
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1316256-MT333024
Ultra Librarian 3D Model Ultra Librarian MT333024 CAD Model

Description

This SCHRACK MT Series 3PDT (3 Form C) General Purpose Power Relay is an ideal component for your electronic projects.

  • Termination Style: Plug-In (11 pins - octal)
  • Features: Lighted Indicator, Test Button
  • Contact Material: Silver Nickel (AgNi)
  • Coil Resistance: 475 Ohms
  • Coil Current: 50 mA
  • Operating Time: 15 ms
  • Release Time: 10 ms
  • Coil Voltage: 24VDC
  • Contact Rating: 10 A
  • Switching Voltage: 400VAC - Max
  • Base Product Number: MT33
  • Package: Tray
  • Temperature Range: -40°C ~ 60°C
  • Manufacturer: SCHRACK
This relay is socketable.
