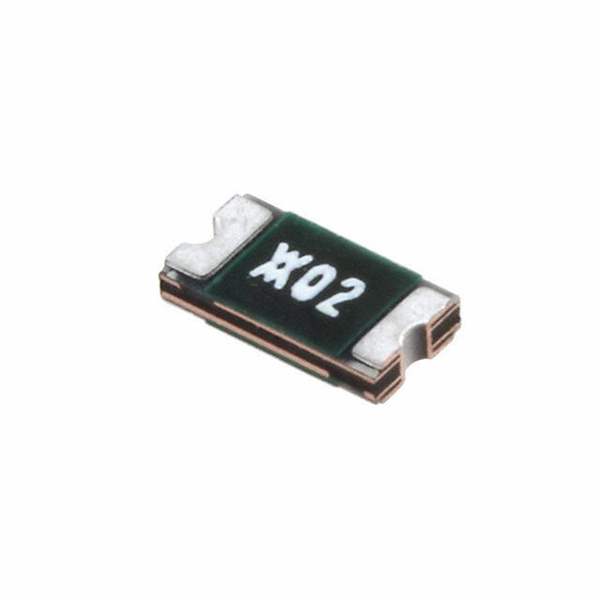

NANOSMDC150F-2 TE Connectivity
Same model may have multiple batches, images only for reference.

NANOSMDC150F-2

Part No NANOSMDC150F-2
Manufacturer TE Connectivity
Catalog PTC Resettable Fuses
Description POLYSWITCH 1.50A RESET FUSE SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity
Standard Package 1
Category Circuit Protection
Family PTC Resettable Fuses
Series PolySwitch
Packaging Reel
Voltage - Max 6V
Current - Max 100A
Current - Hold (Ih) (Max) 1.5A
Current - Trip (It) 3A
R Min/Max 0.040 ~ 0.110 Ohm
Time to Trip 0.3s
Package 1206 (3216 Metric) Concave Long Side Terminals
Catalog PolySwitch Surface Mount
Win Source Part Number 095433-NANOSMDC150F-2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian NANOSMDC150F-2 CAD Model

Description

The electronic component with Id 256876 is a PTC resettable fuse from the PolySwitch series manufactured by TE Connectivity.

  • Package: 1206 (3216 Metric) concave long side terminals package
  • Maximum Voltage: 6V
  • Maximum Current: 100A
  • Hold Current: 1.5A
  • Trip Current: 3A
  • R Min/Max: 0.040 ~ 0.110 Ohm
  • Time to Trip: 0
  • Supply and Demand Status: sufficient
