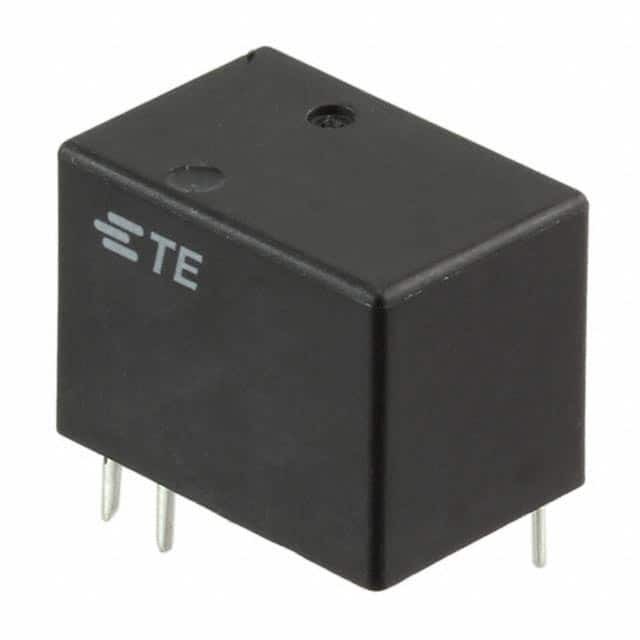

Same model may have multiple batches, images only for reference.

OUAZ-SH-105L,900

Get a Quote

Part No	OUAZ-SH-105L,900
Manufacturer	TE Connectivity
Catalog	Signal Relays, Up to 2 Amps
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Relays>Signal Relays, Up to 2 Amps
Mfr	TE Connectivity Potter & Brumfield Relays
Series	OUAZ, OEG
Package	Tube
Mounting Type	Through Hole
Coil Voltage	5VDC
Contact Form	SPDT (1 Form C)
Contact Rating (Current)	1 A
Switching Voltage	120VAC, 24VDC - Max
Coil Current	40 mA
Coil Type	Non Latching
Termination Style	PC Pin
Seal Rating	Sealed - Fully
Must Operate Voltage	3.75 VDC
Must Release Voltage	0.5 VDC
Operate Time	10 ms
Release Time	7 ms
Temperature Range - Operating	-30°C ~ 70°C
Contact Material	Silver Palladium (AgPd), Gold (Au)
Relay Type	Telecom
Coil Resistance	125 Ohms
Base Product Number	OUAZ-SH
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.41.0020
Win Source Part Number	1315164-OUAZ-SH-105L,900
Ultra Librarian 3D Model	Ultra Librarian OUAZ-SH-105L,900 CAD Model

Alternative Products

Description

The TE Connectivity Potter & Brumfield Relays OUAZ-SH-105L,900 is a telecom signal relay that has a contact form of SPDT (1 Form C). OUAZ-SH-105L,900 from TE Connectivity Potter & Brumfield Relays

Contact Form: SPDT (1 Form C)
Contact Material: Silver Palladium (AgPd) and Gold (Au)
Coil Voltage: 5VDC
Coil Resistance: 125 Ohms
Coil Current: 40 mA
Operate Time: 10 ms
Release Time: 7 ms
Contact Rating (Current): 1 A
Switching Voltage: 120VAC, 24VDC - Max
Seal: Fully Sealed
Mounting Type: Through Hole
Temperature Range: -30°C ~ 70°C
REACH: Unaffected
Application: Telecom
