Same model may have multiple batches, images only for reference.

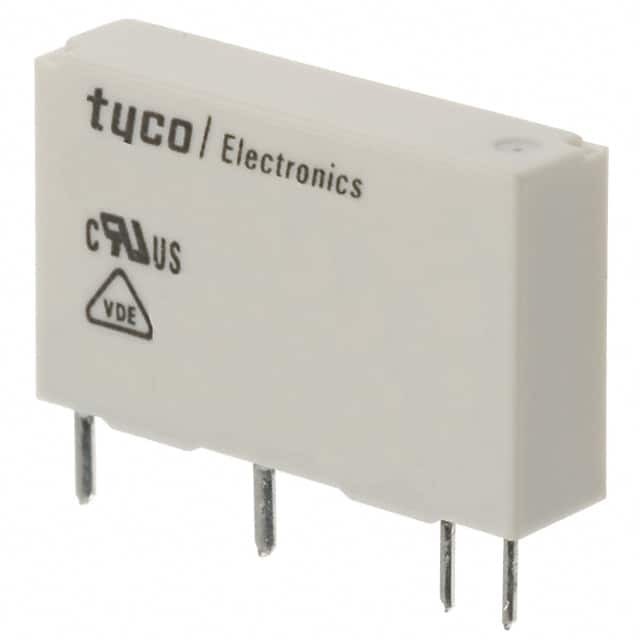

PCN-106D3MHZ,000 TE Connectivity
Same model may have multiple batches, images only for reference.

PCN-106D3MHZ,000

Part No PCN-106D3MHZ,000
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series PCN, SCHRACK
Package Tube
Mounting Type Through Hole
Coil Voltage 6VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 3 A
Switching Voltage 277VAC, 125VDC - Max
Coil Current 20 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 4.2 VDC
Must Release Voltage 0.6 VDC
Operate Time 8 ms
Release Time 3 ms
Temperature Range - Operating -30°C ~ 70°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 300 Ohms
Base Product Number PCN-106
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1315535-PCN-106D3MHZ,000
Ultra Librarian 3D Model Ultra Librarian PCN-106D3MHZ,000 CAD Model

Description

The TE Connectivity Potter & Brumfield PCN-106D3MHZ,000 is a general-purpose power relay designed for use in electronic equipment.

  • Contact Form: Single-Pole Single-Throw Normally Open
  • Coil Voltage: 6VDC
  • Contact Rating: 3A
  • Switching Voltage: 277VAC and 125VDC (max)
  • Seal Rating: Fully Sealed
  • Mounting: Through-Hole
  • Packaging: Tube
  • Temperature Range: -30°C to 70°C
  • Application: Power Relay
