Same model may have multiple batches, images only for reference.

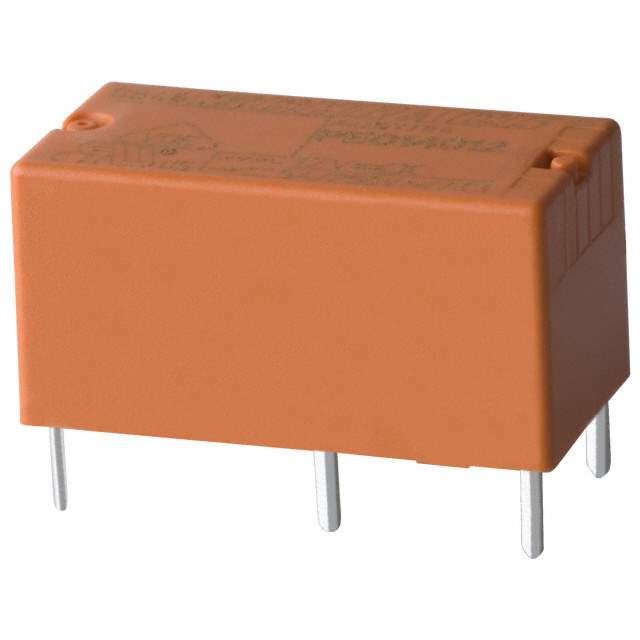

PE014012 Real Image
Same model may have multiple batches, images only for reference.

PE014012

Part No PE014012
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 5A 12V
Datasheet
PE014012 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 17.5mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 5A
Switching Voltage 400VAC - Max
Turn On Voltage (Max) 9 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 8ms
Release Time 8ms
Features Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 210 mW
Coil Resistance 685 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 037357-PE014012
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PE014012 CAD Model

Description

This TE Connectivity Potter & Brumfield Relay is a high-quality general purpose relay with a SPDT (1 Form C) contact form.

  • Contact Form: SPDT (1 Form C)
  • Coil Type: non-latching
  • Coil Voltage: 12VDC
  • Coil Resistance: 685 Ohms
  • Contact Rating: 5A
  • Switching Voltage: 400VAC
  • Protection Feature: sealed-flux
  • Operate Time: 8ms
  • Release Time: 8ms
  • Turn-On Voltage: 9VDC
  • Turn-Off Voltage: 1.2VDC
  • Mounting: through-hole
  • Packaging: tube/rail
